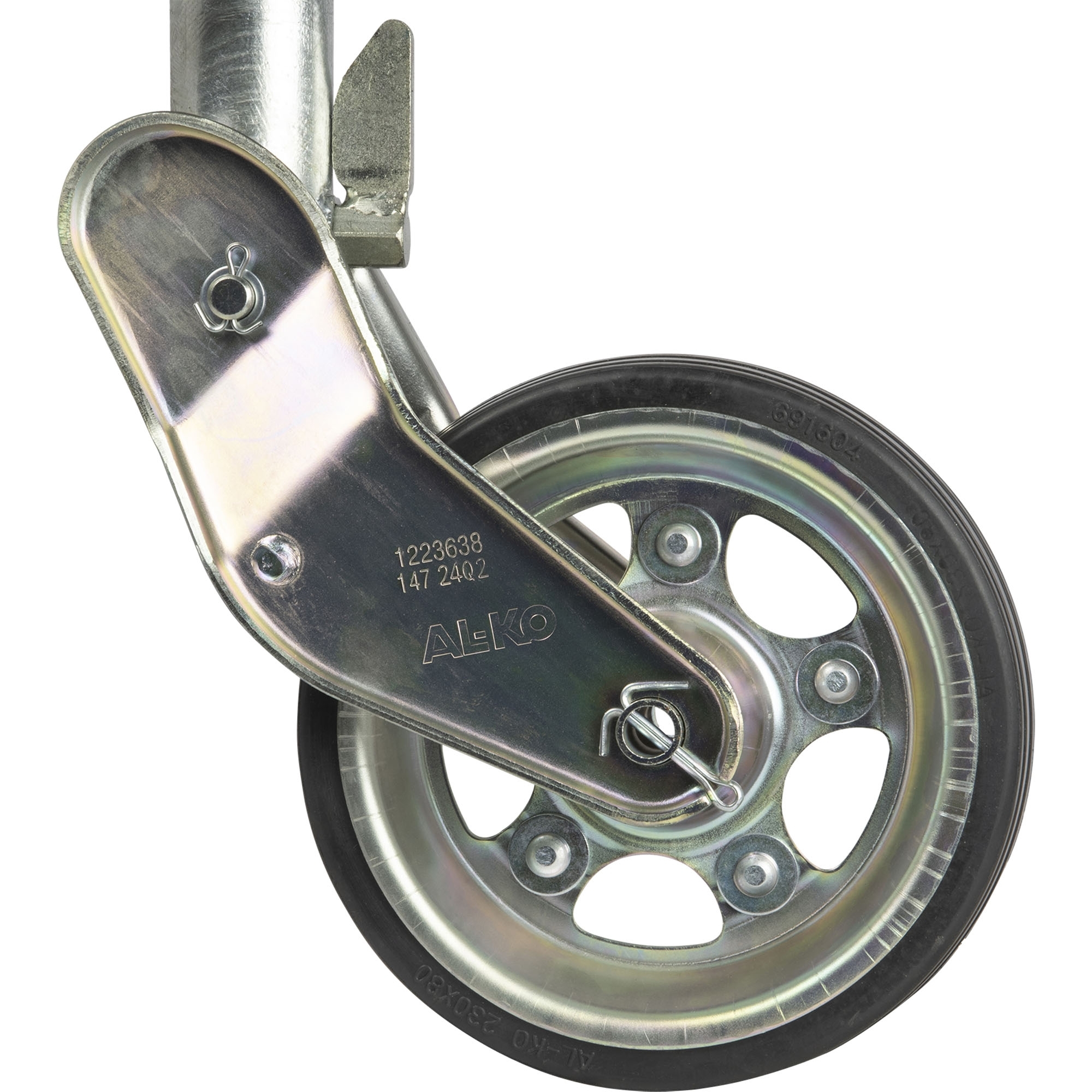

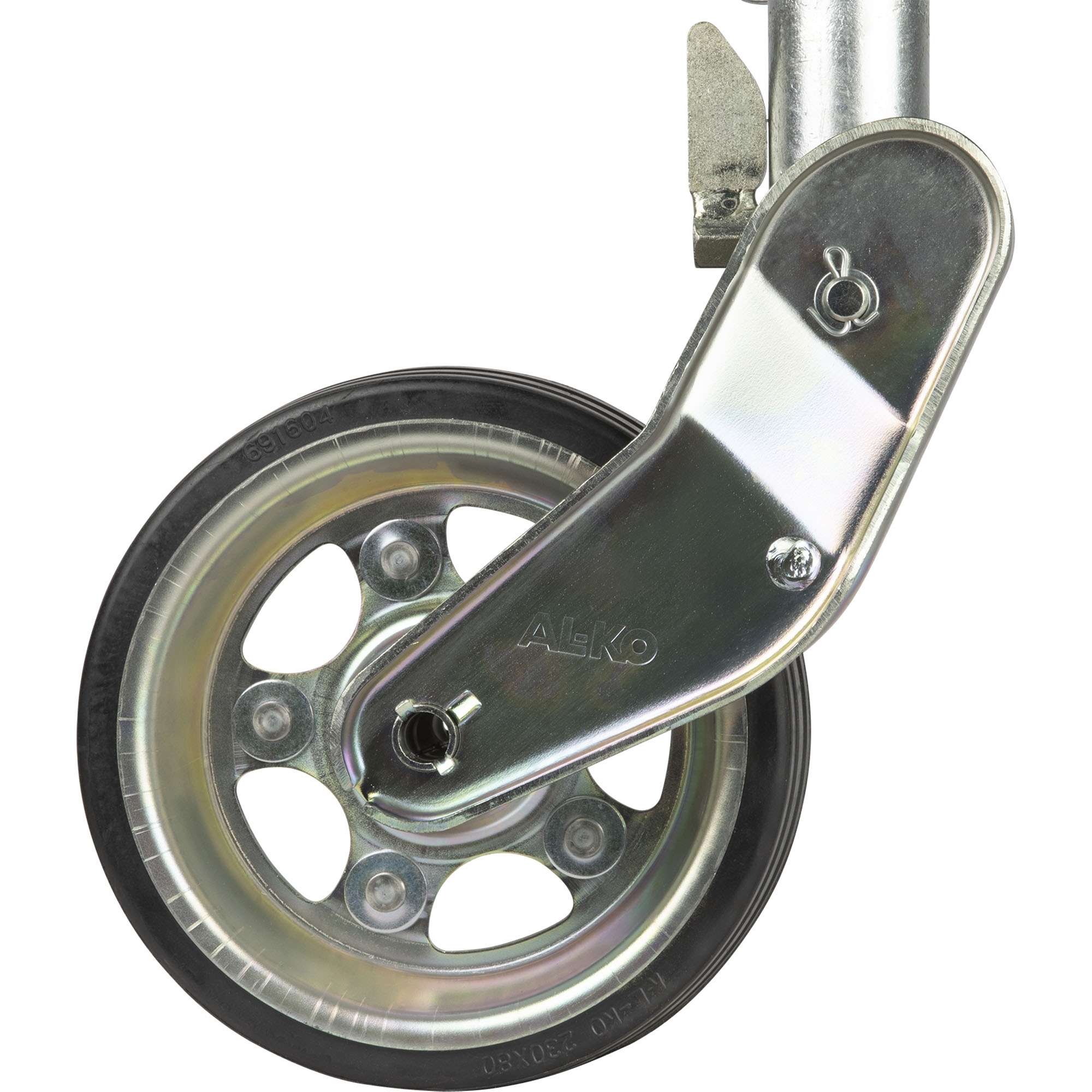

Automatic-Jockey Wheel Ø 60 mm, Nose load 500 kg
Product number:
1223638
Product information "Automatic-Jockey Wheel Ø 60 mm, Nose load 500 kg"
Automatic-jockey wheel AL-KO Ø 60 mm,

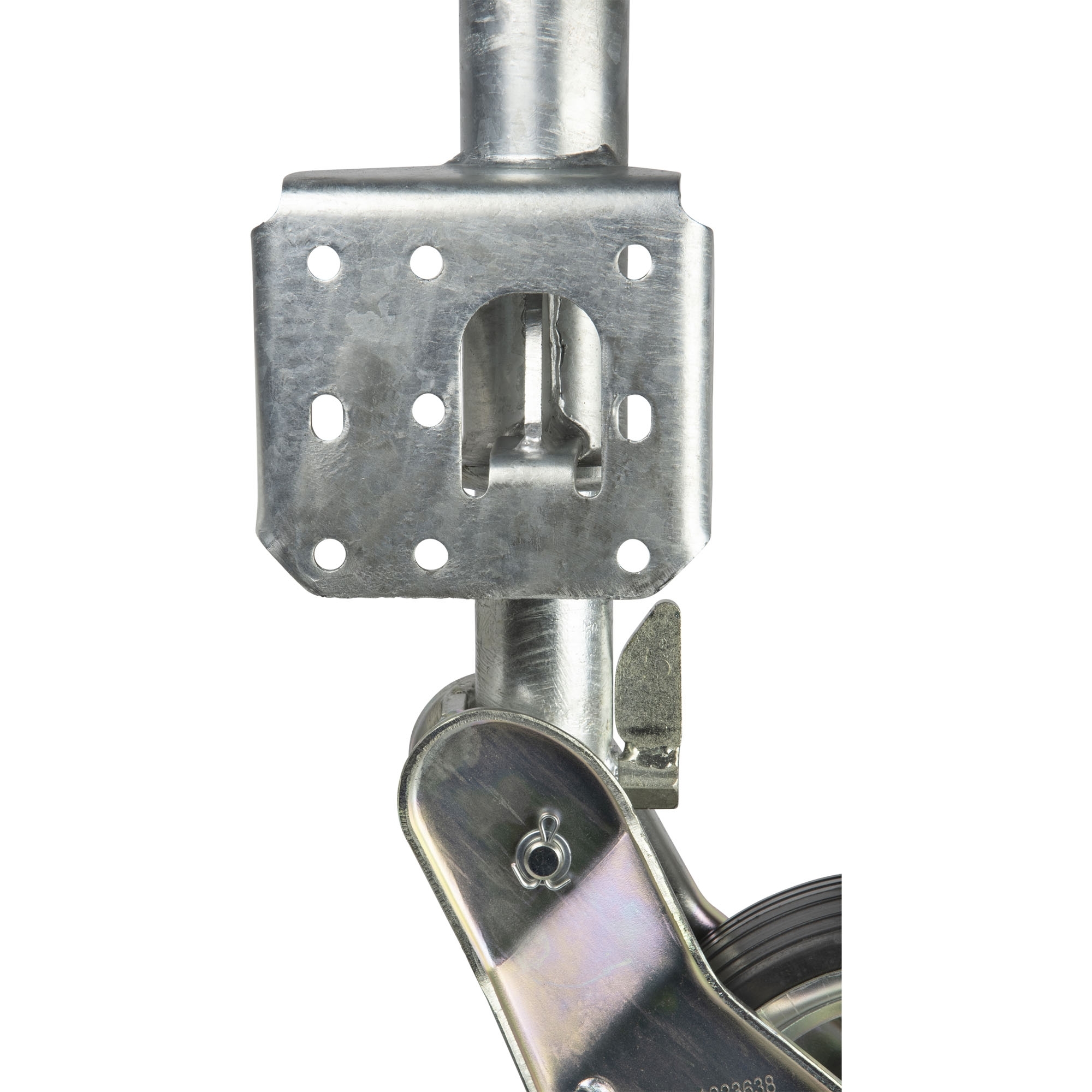

reinforced version, with mounting plate
Solid rubber wheel with metal rim
Wheel 230 x 80 mm
Nose load 500 kg
Tube length 690 mm
Extended length 340 mm
Material galvanised steel
high corrosion protection
Weight 14.0 kg
| Durchmesser (mm): | 60 |
|---|---|
| Gewicht: | 14.5 |
| Hersteller: | AL-KO |
| Hub (mm): | 340 |
| Material: | Stahl |
| Reifen-Ø (mm): | 230 |
| Reifenbreite (mm): | 80 |
| Rohrlänge (mm): | 460 |
| Stützlast (kg): | 500 |
| VPE (Palette): | 30 |
Login
Zubehör
Jockey Wheel Strut with Pipe Clamp, Pipe Ø 60 mm
Jockey wheel strut with pipe clamp
for pipe Ø 60 mm
Material steel, hot-dip galvanized
Product number:
016013028
Solid Rubber Wheel, 230 x 80 mm, Metal Rim
Solid rubber wheel for jockey wheel
with reinforced metal rim
Wheel 230 x 80 mm
Hub-Ø 20 mm
Hub length 95 mm
Product number:
691604
Crank for Jockey Wheel, AL-KO, Inner Ø 17 mm
Crank AL-KO
for jockey wheel
Inner Ø 17 mm
Product number:
694500
Maneuvering Handle for Jockey Wheel Ø 60 mm
Maneuvering handle
for jockey wheel Ø 60 mm
Color
Material plastic
Product number:
012100212
