Gas springs

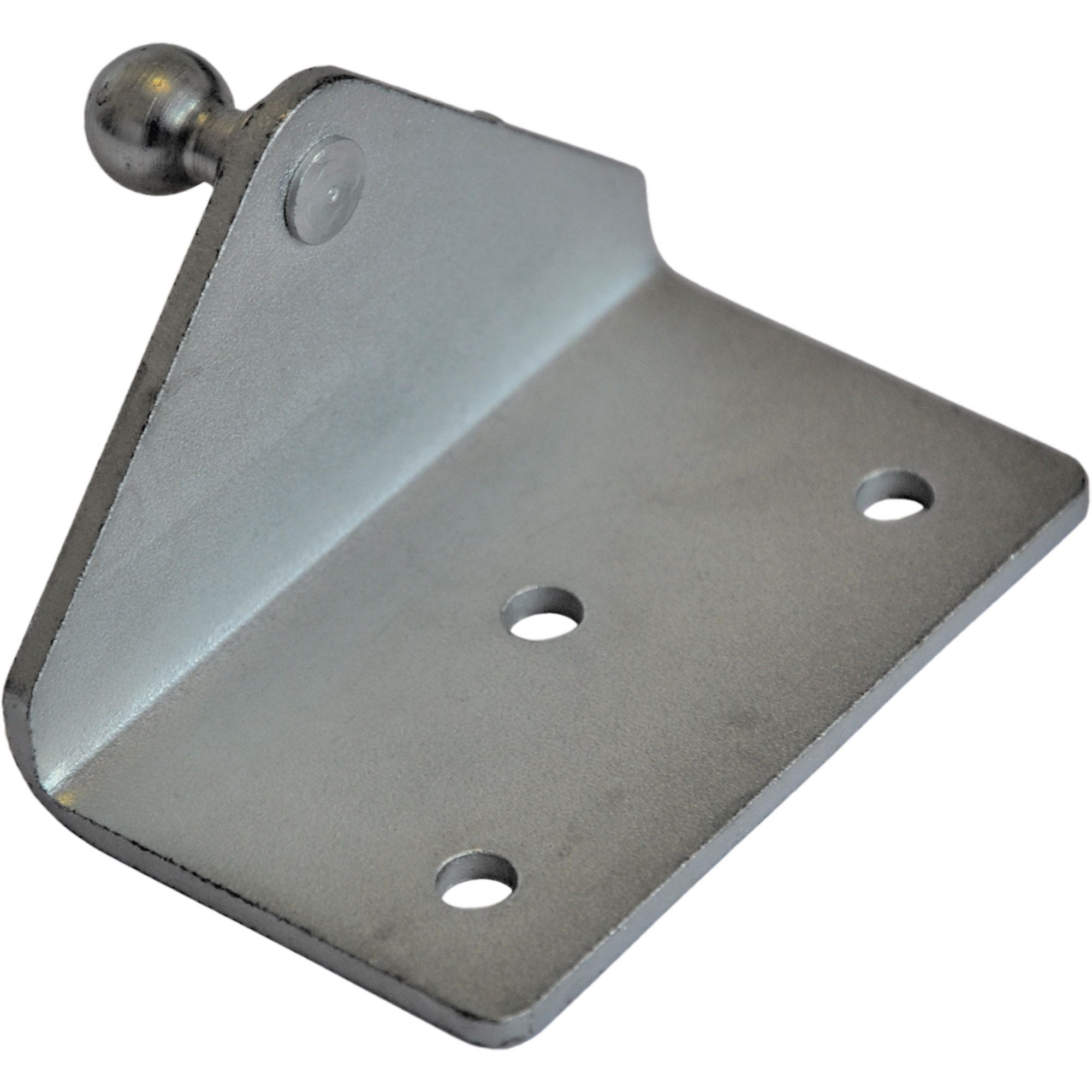

Angle bracket with ball Material steel, galvanized, blue chromated Ball Ø (A) 10 mm Hole distance (B) 45 mm Height (C) 30 mm Hole Ø (D) 5.3 mm Width (E) 40 mm Distance outer edge - hole (F) 22 mm Length (G) 65 mm

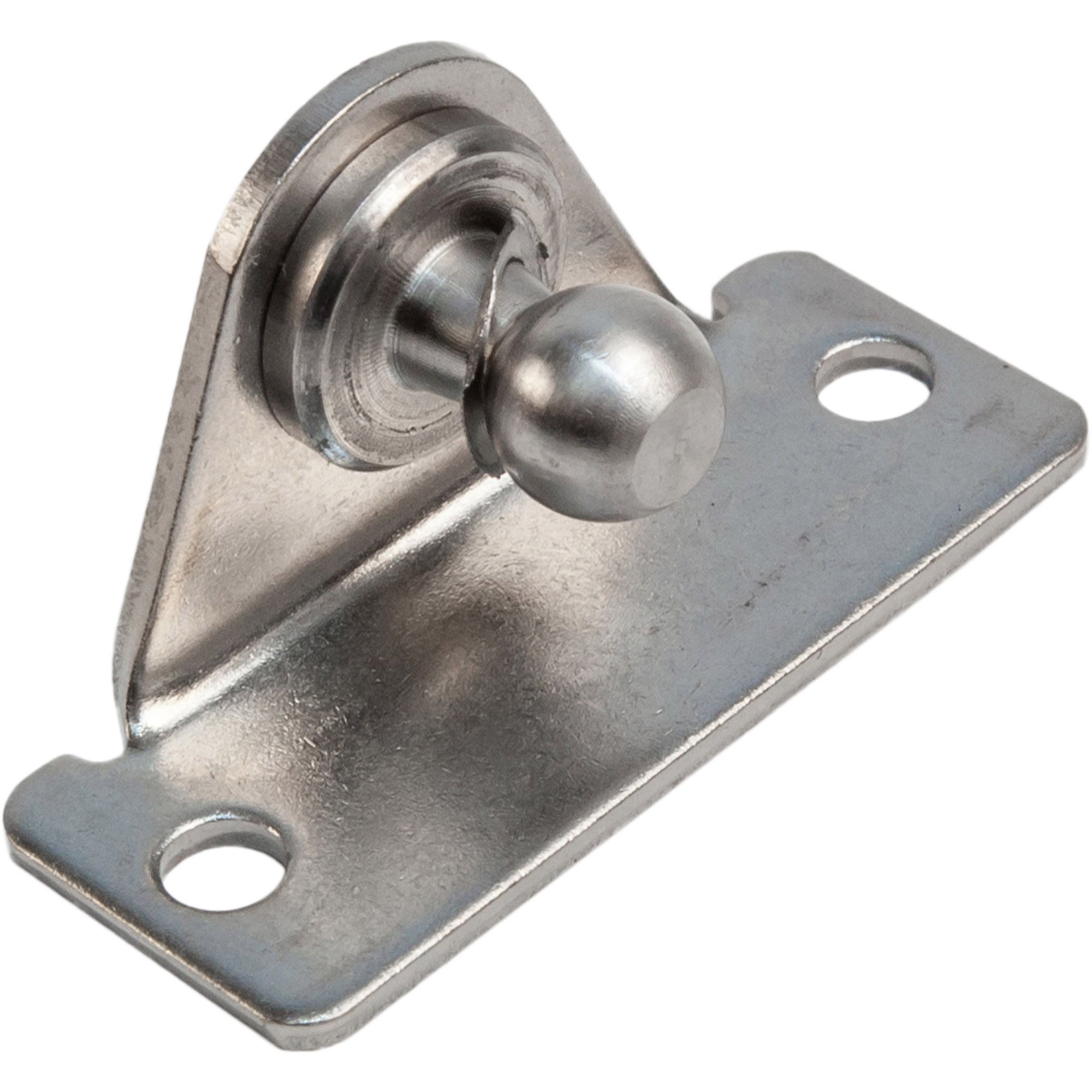

Angle bracket with ball Material stainless steel Ball Ø (A) 10 mm Hole distance (B) 40 mm Depth (C) 20 mm Hole Ø (D) 4.3 mm Width (E) 50 mm Height (F) 16 mm

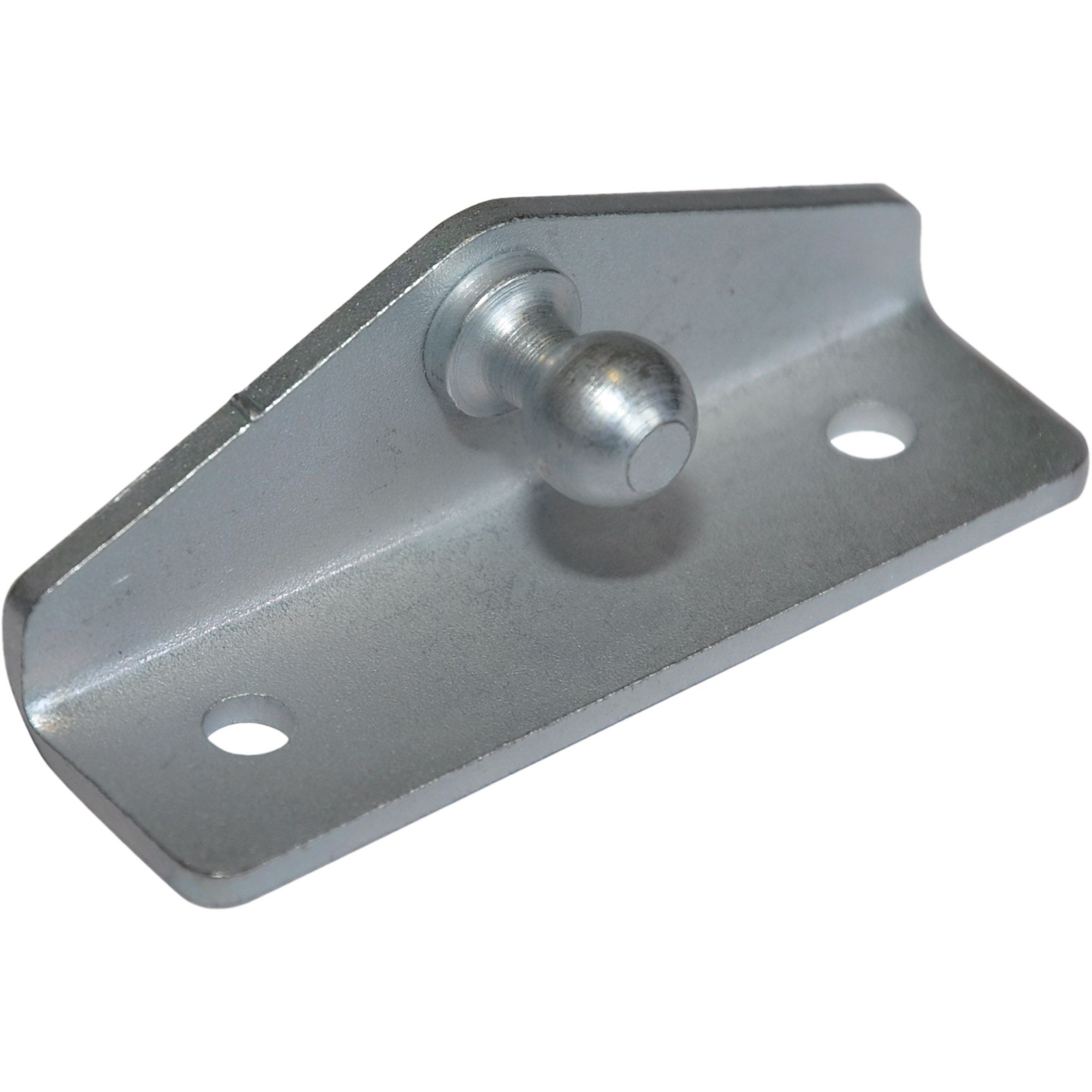

Angle bracket with ball Material steel, galvanized, blue chromated Ball Ø (A) 10 mm Hole distance (B) 38 mm Depth (C) 20 mm Hole Ø (D) 5.1 mm Width (E) 65 mm Height (F) 19 mm

Angle bracket with ball Material stainless steel Ball Ø (A) 13 mm Hole distance (B) 40 mm Depth (C) 20 mm Hole Ø (D) 4.3 mm Width (E) 50 mm Height (F) 16 mm

Angle bracket with ball Material stainless steel Ball Ø (A) 8 mm Hole distance (B) 19 mm Depth (C) 10 mm Hole Ø (D) 3.2 mm Width (E) 25 mm Height (F) 10 mm

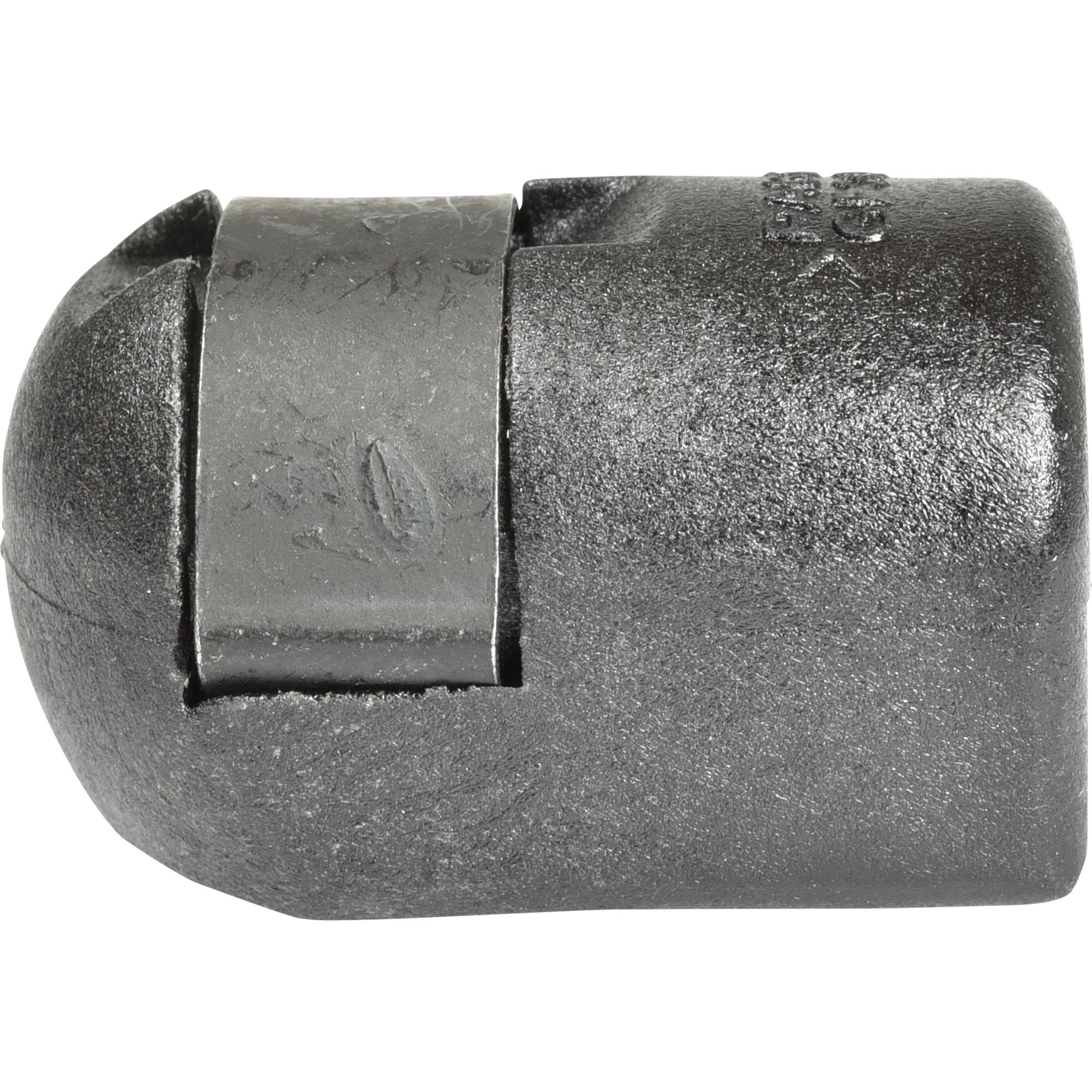

Ball socket with safety clip Material plastic Ball socket length (D) 19 mm Ball socket thread (E) M6 Ball Ø 10 mm DIN 71805

Ball socket with safety clip Material plastic Ball socket length (D) 18 mm Ball socket thread (E) M8 Ball Ø 10 mm DIN 71805

Ball socket with safety clip Material steel, galvanized Ball socket length (D) 19 mm Ball socket thread (E) M5 Ball Ø 10 mm DIN 71805

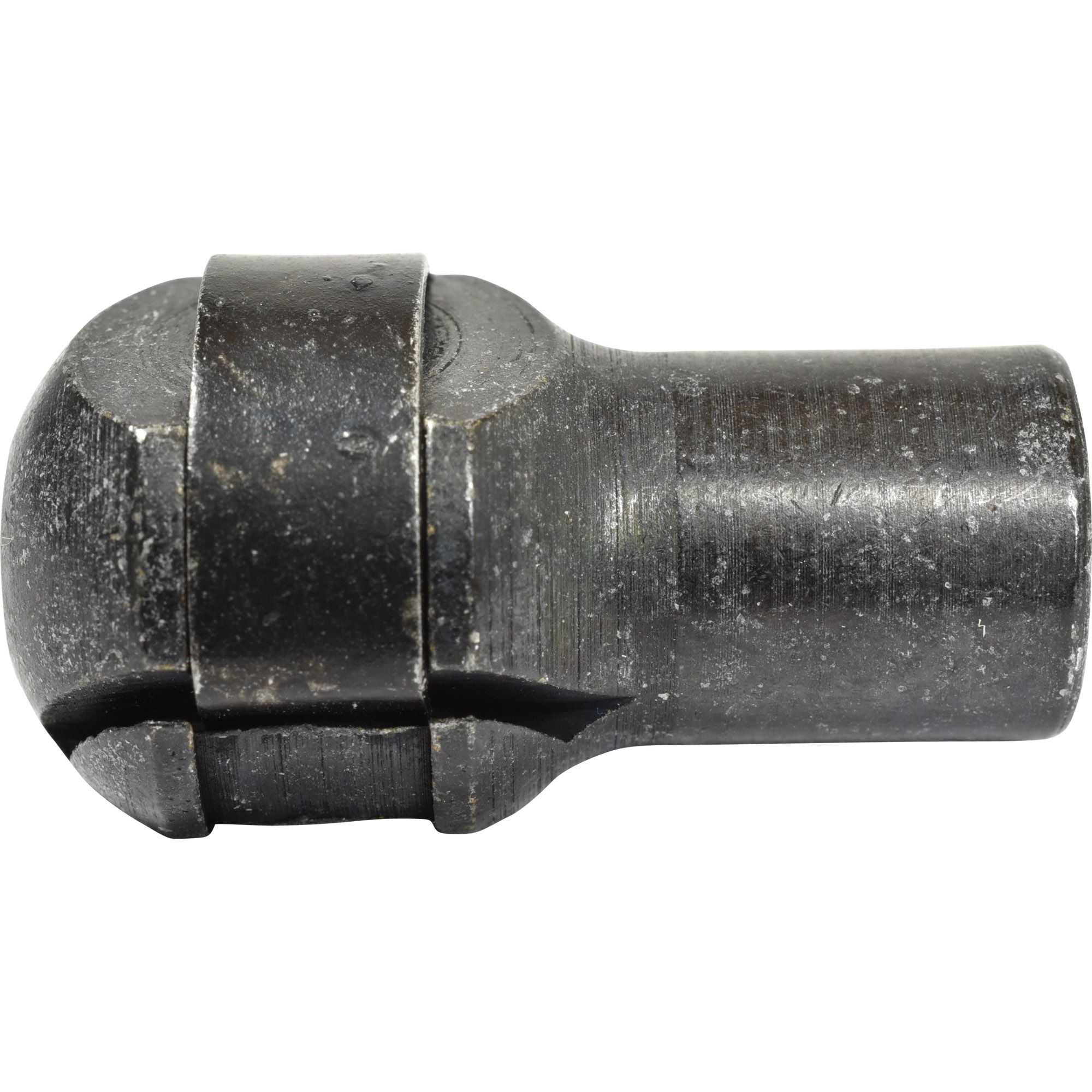

Ball socket with safety clip Material steel, galvanized Ball socket length (D) 19 mm Ball socket thread (E) M6 Ball Ø 10 mm DIN 71805

Ball socket without safety clip Material steel, galvanized Ball socket length (D) 19 mm Ball socket thread (E) M6 Ball Ø 10 mm DIN 71805

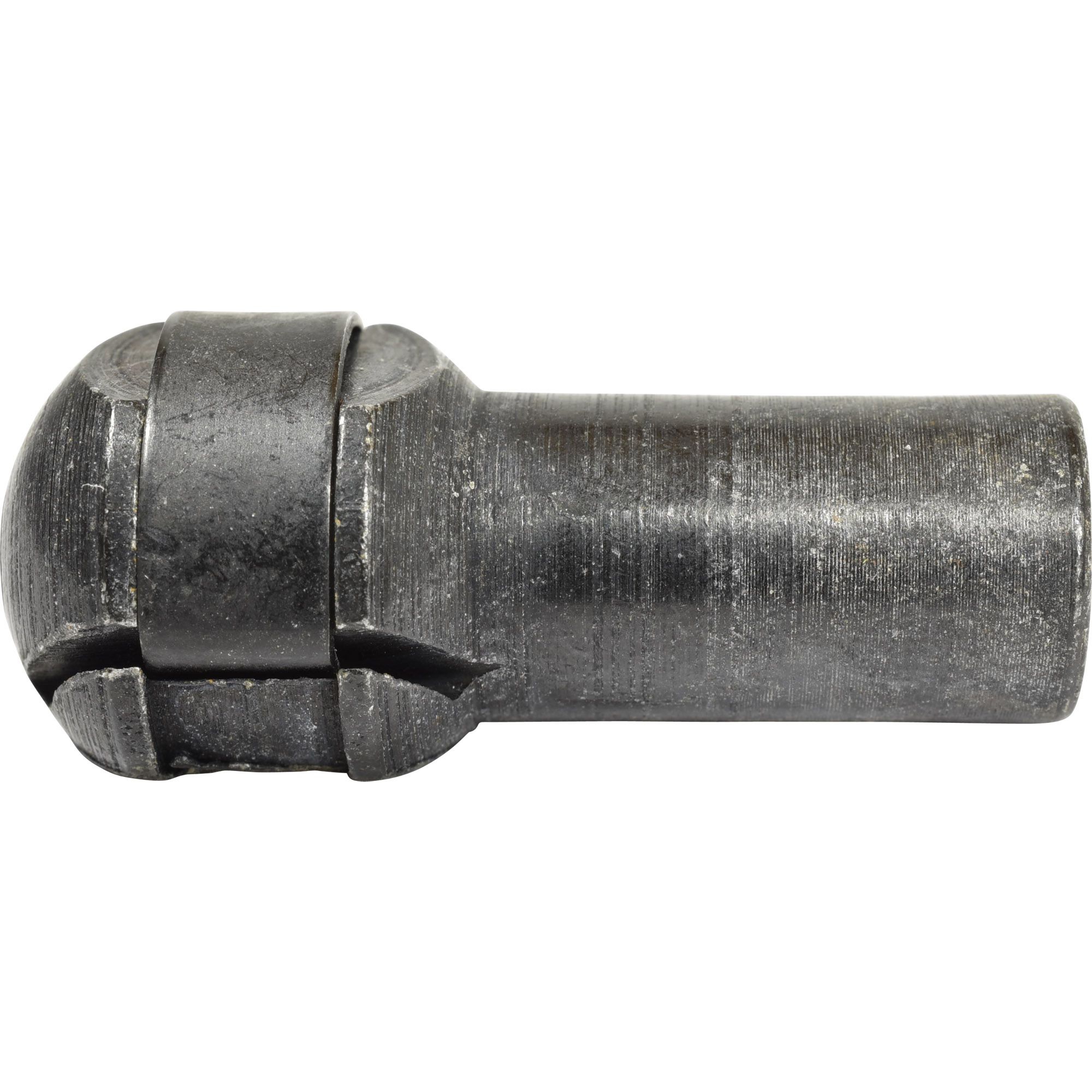

Ball socket with safety clip Material steel, galvanized Ball socket length (D) 25 mm Ball socket thread (E) M6 Ball Ø 10 mm DIN 71805

Ball socket without safety clip Material steel, galvanized Ball socket length (D) 25 mm Ball socket thread (E) M6 Ball Ø 10 mm DIN 71805

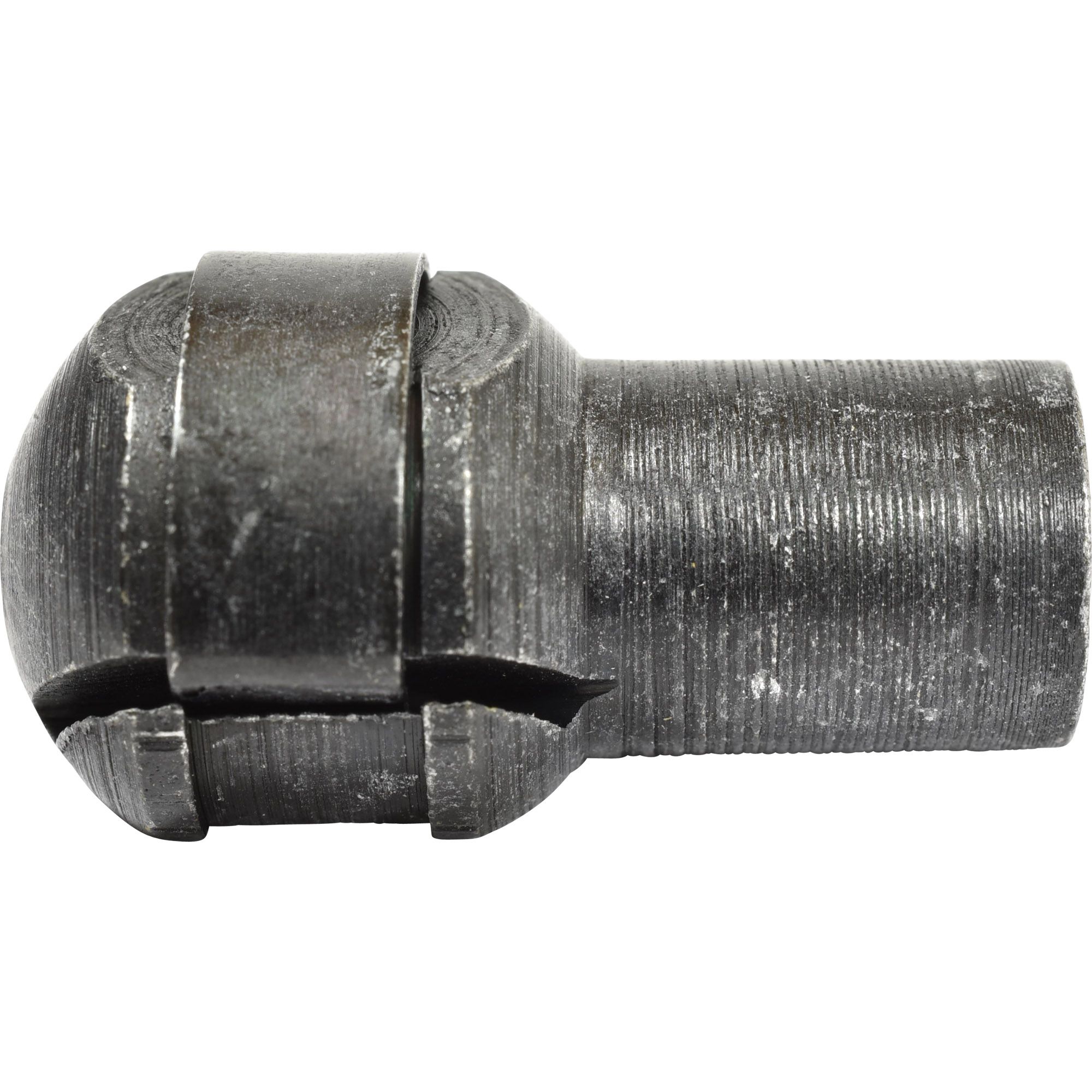

Ball socket with safety clip Material steel, galvanized Ball socket length (D) 19 mm Ball socket thread (E) M8 Ball Ø 10 mm DIN 71805

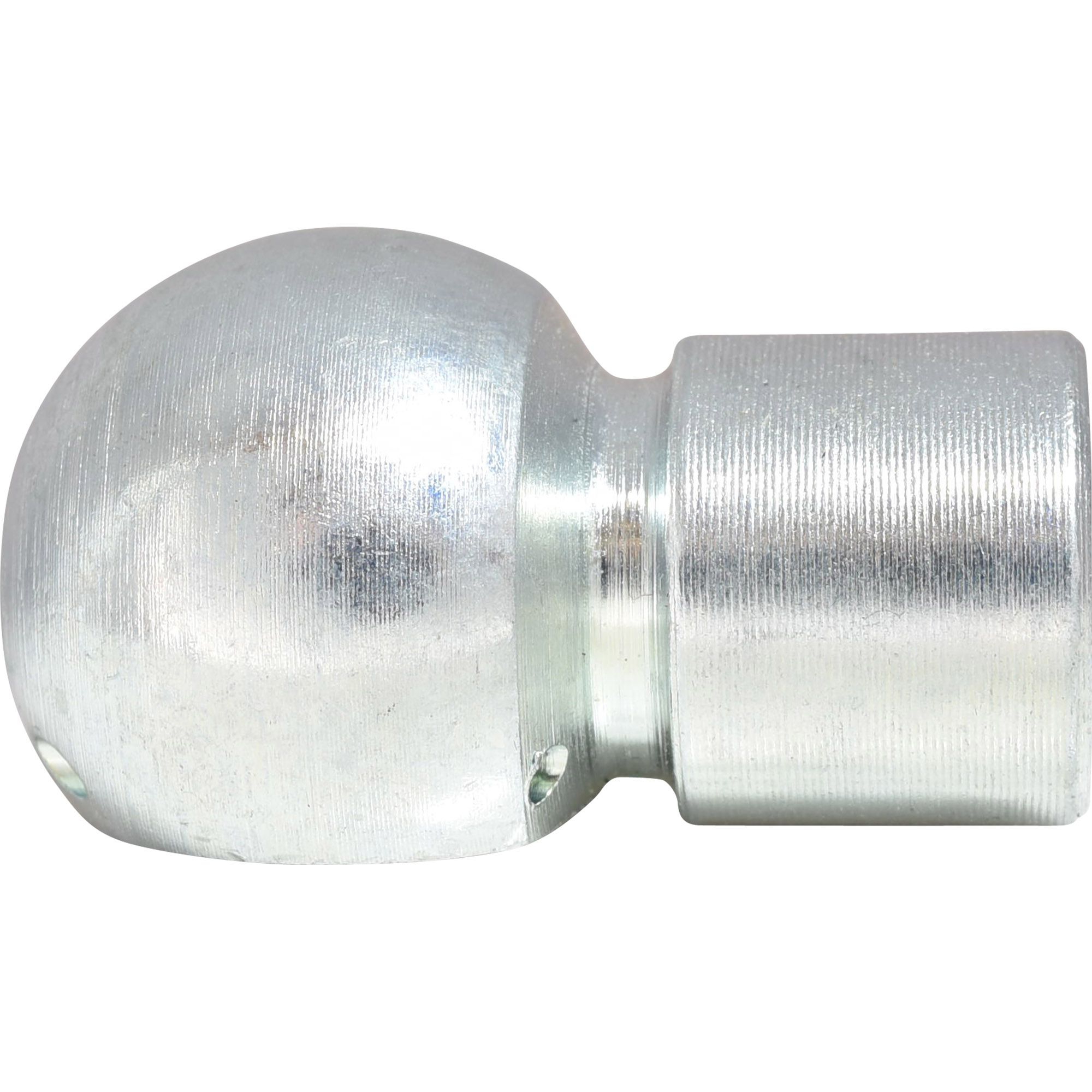

Ball socket without safety clip Material steel, galvanized Ball socket length (D) 20 mm Ball socket thread (E) M8 Ball Ø 13 mm DIN 71805

Ball socket without safety clip Material steel, galvanized Ball socket length (D) 25 mm Ball socket thread (E) M8 Ball Ø 13 mm DIN 71805

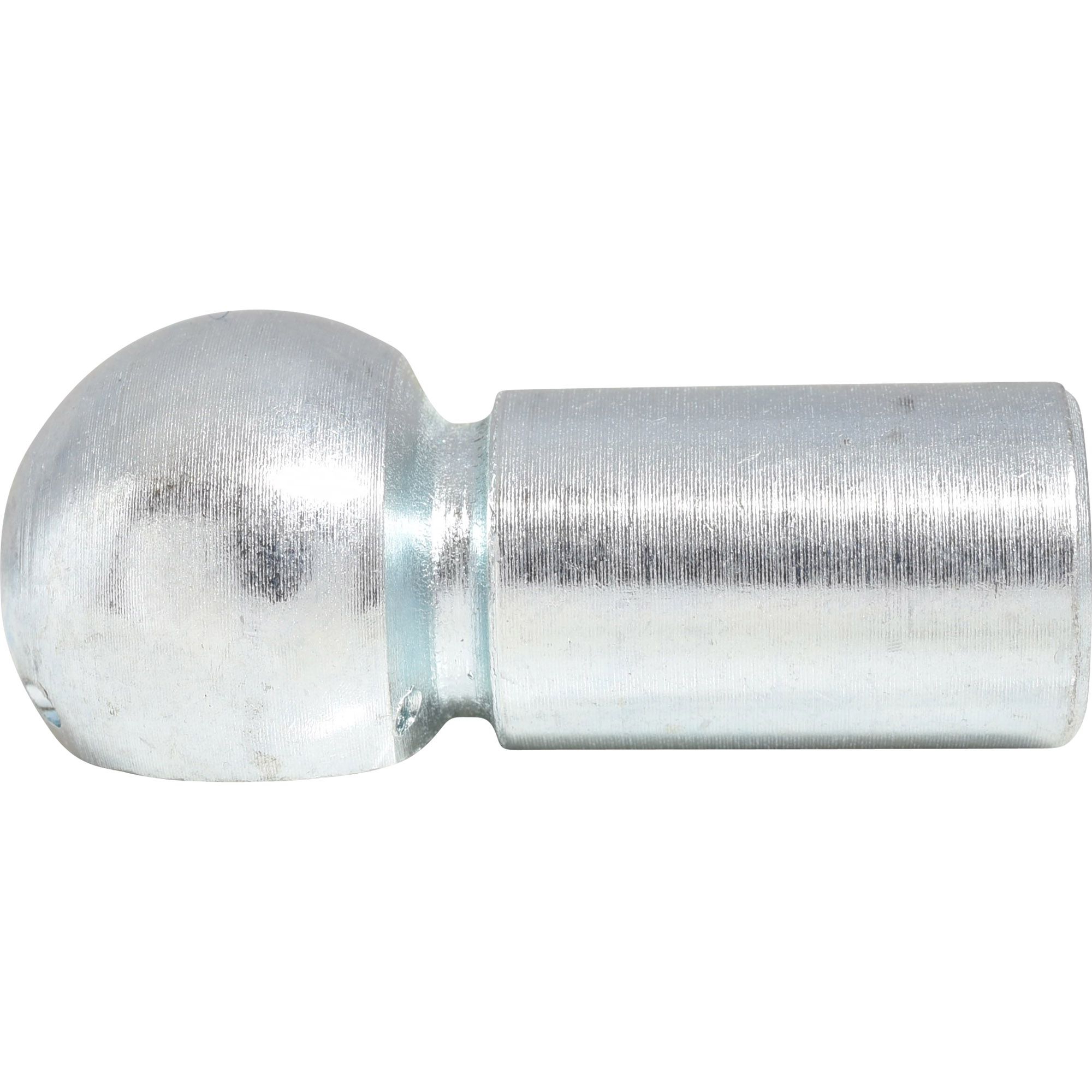

Ball socket without safety clip Material steel, galvanized Ball socket length (D) 30 mm Ball socket thread (E) M8 Ball Ø 13 mm DIN 71805

Ball stud Material steel, galvanized Ball stud thread (A) M6 Ball stud thread length (B) 13 mm Ball stud length (C) 12 mm Width across flat 13 mm Ball Ø 10 mm

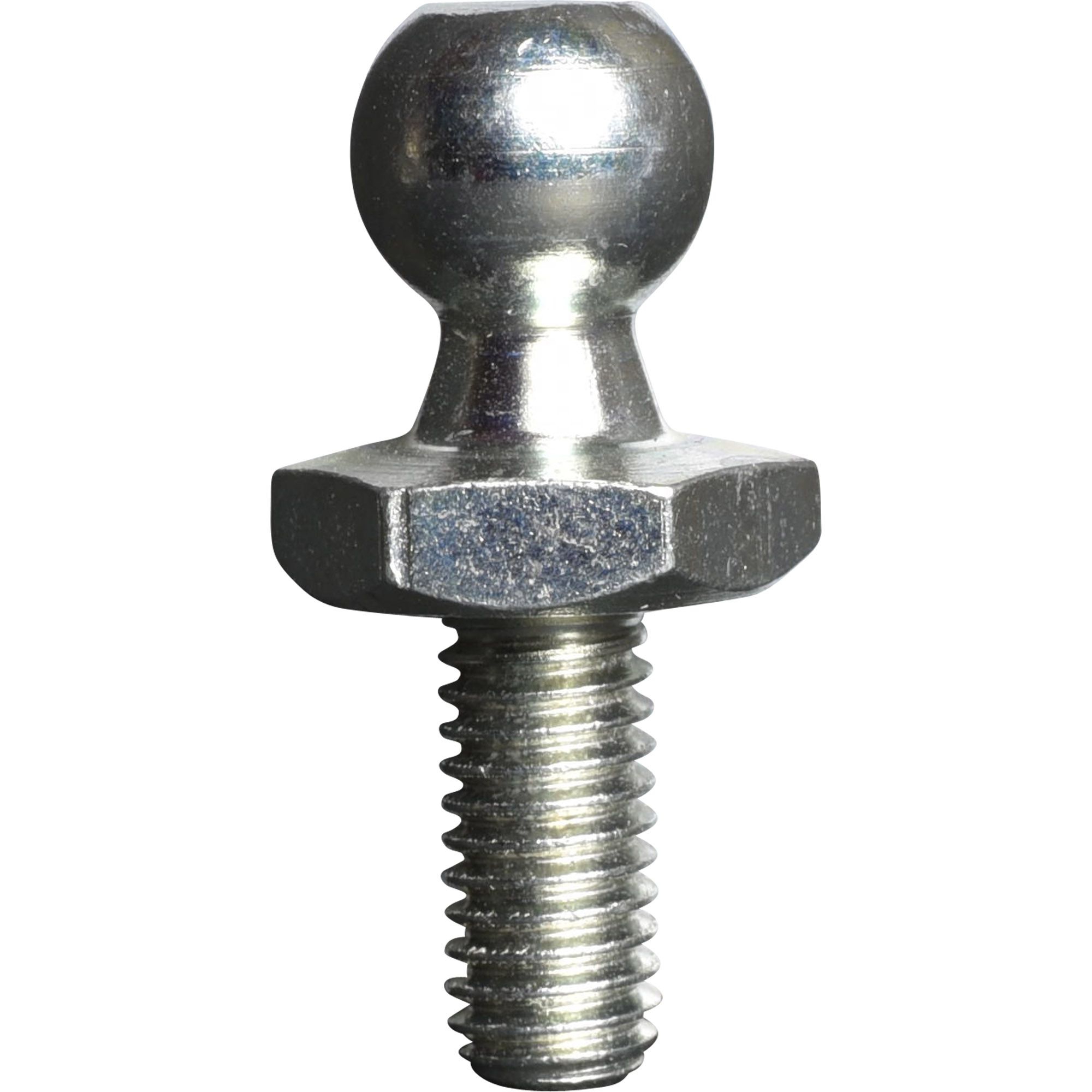

Ball stud Material steel, galvanized Ball stud thread (A) M8 Ball stud thread length (B) 13 mm Ball stud length (C) 11 mm Width across flat 13 mm Ball Ø 10 mm

Ball stud Material steel, galvanized Ball stud thread (A) M8 Ball stud thread length (B) 16 mm Ball stud length (C) 13 mm Width across flat 11 mm Ball Ø 13 mm

Bearing block Material plastic, with steel bolt Hole distance width (A) 45 mm Hole distance depth (B) 14 mm Height (C) 24 mm Inner width (D) 6 mm Bolt Ø 8 mm

Bearing shoe Material stainless steel Hole distance (A) 51 mm Width (B) 18 mm Height (C) 20 mm Distance hole to bolt center (D) 25.5 mm Bolt Ø 8 mm

Bearing shoe Material steel, galvanized Hole distance (A) 51 mm Width (B) 13 mm Height (C) 17 mm Distance hole to bolt center (D) 20 mm Bolt Ø 8 mm

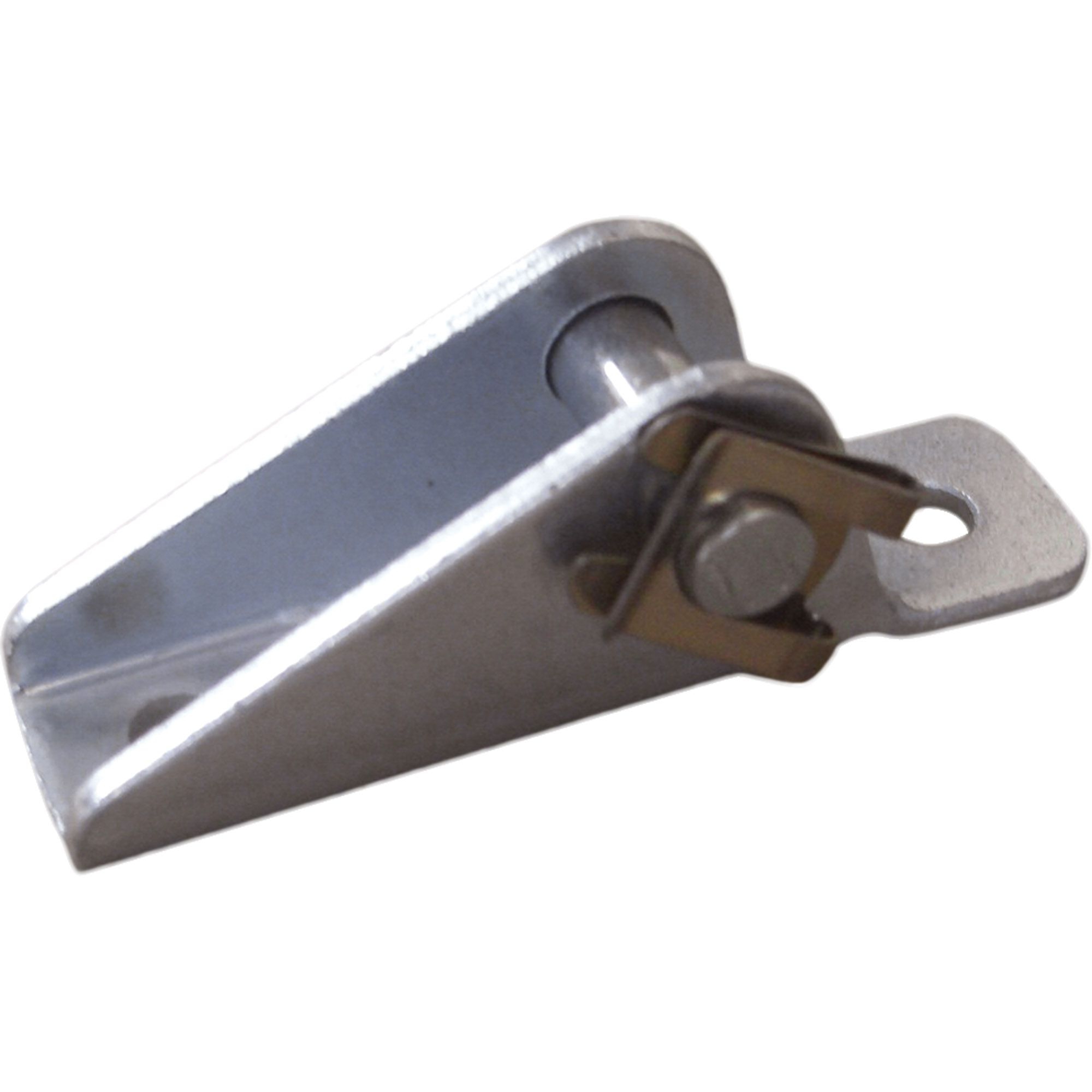

Bearing shoe Material steel, galvanized Hole distance (A) 85 mm Width (B) 13 mm Height (C) 23 mm Distance hole to bolt center (D) 22.5 mm Bolt Ø 8 mm

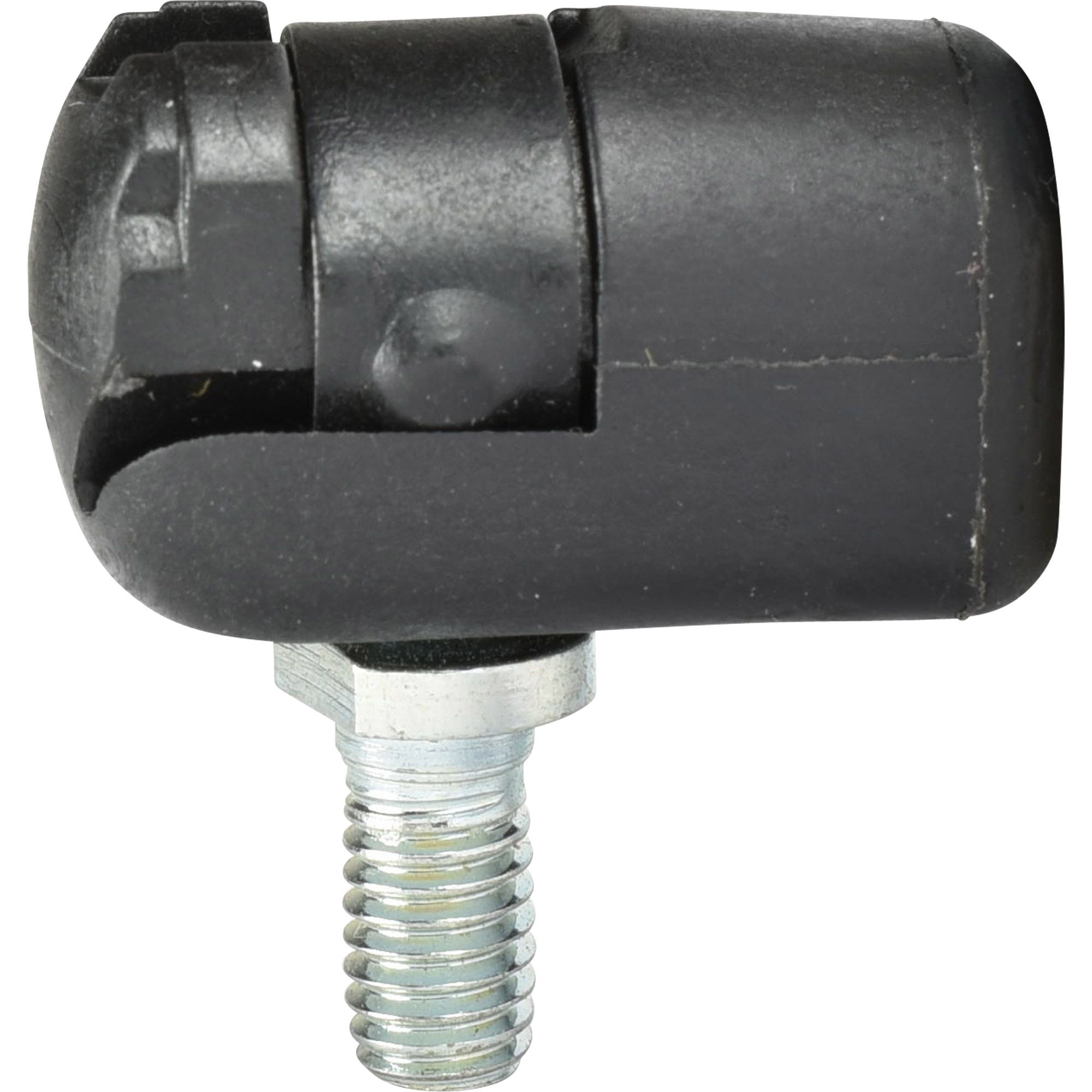

Elbow with safety clip Material plastic Ball stud thread (A) M6 Ball stud thread length (B) 12 mm Ball stud length (C) 11 mm Ball socket length (D) 18 mm Ball socket thread (E) M6 Width across flat 13 mm
