Spare parts for wheel brakes
2 x Flange nut for AL-KO, Knott, Nieper Dimensions M24 x 1.5 mm Width across flats 32 mm Tightening torque 280 – 300 NM Must be replaced after each opening. packed on skinboard
2 x Grease cap Outer Ø 55.0 mm suitable for AL-KO 1636 G, 1637, 2051, hub unbraked, with compact bearing packed on skinboard
2 x Grease cap Outer Ø 52,0 mm suitable for Knott, Nieper 16-1365, 20-965, 25-2025, with tapered roller bearing packed on skinboard
2 x Grease cap Outer Ø 64.2 mm suitable for Knott 20-2425/1, with compact bearing packed on skinboard
Adjustment set AL-KO Brake type 1635, 1636, 2035, 2050, 2360, 2361 Set for one wheel brake: 2 x Adjustment screw 1 x Adjustment nut

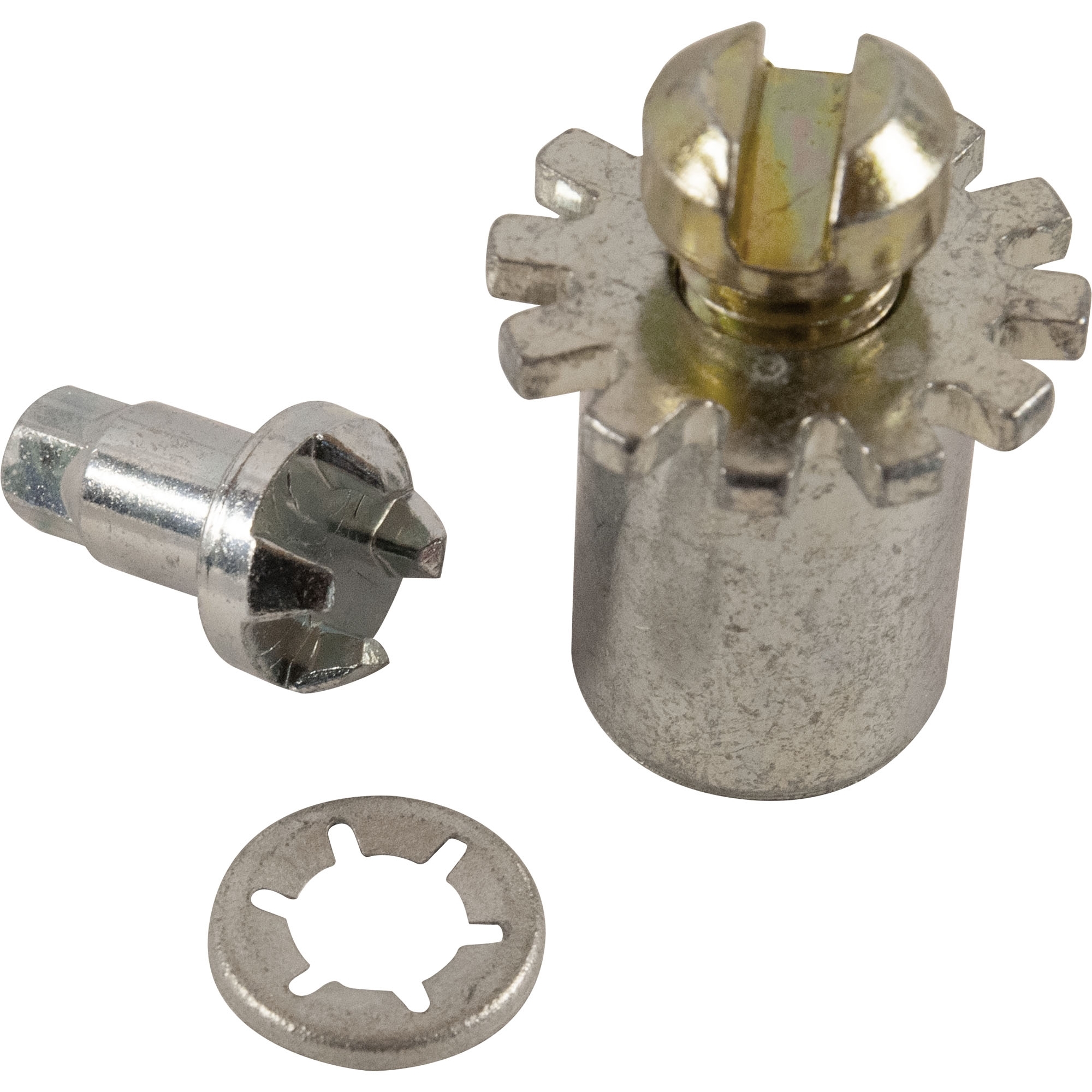

Adjustment set for BPW Brake type S2035-7/ S2005-7/ S2504-7 Set for one wheel brake: 1 x Adjustment bolt 03.276.11.05.0 1 x Adjustment wedge 03.263.91.01.0 1 x Screw 03.341.01.12.0 1 x locking ring 02.3301.09.02

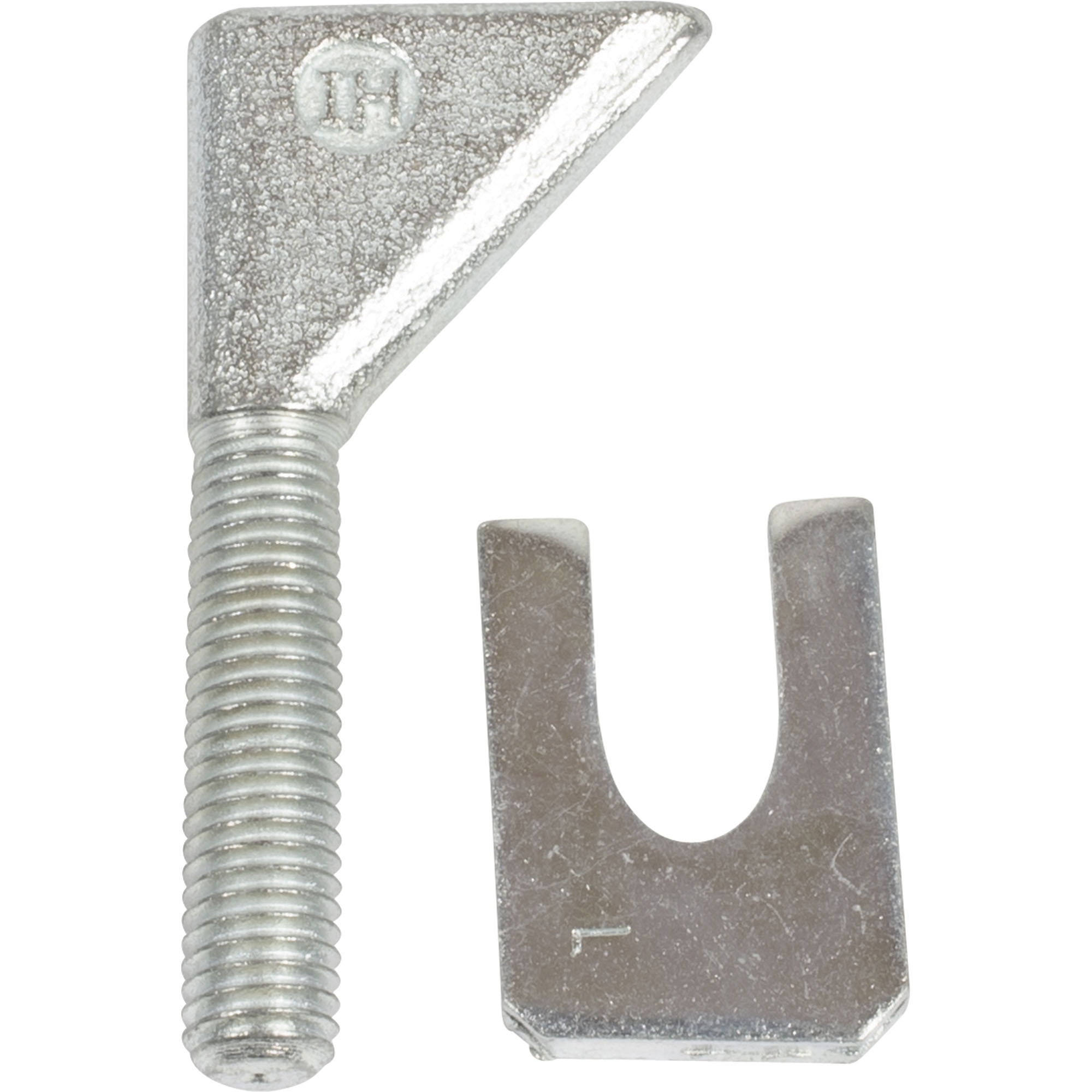

Adjustment set for Peitz Brake type R234-76 Left version 1 set for one wheel brake consisting of: 1 x Adjustment bolt 1 x Adjustment wedge left
Adjustment set for Peitz Brake type R234-76 Right version 1 set for one wheel brake consisting of: 1 x Adjustment bolt 1 x Adjustment wedge right

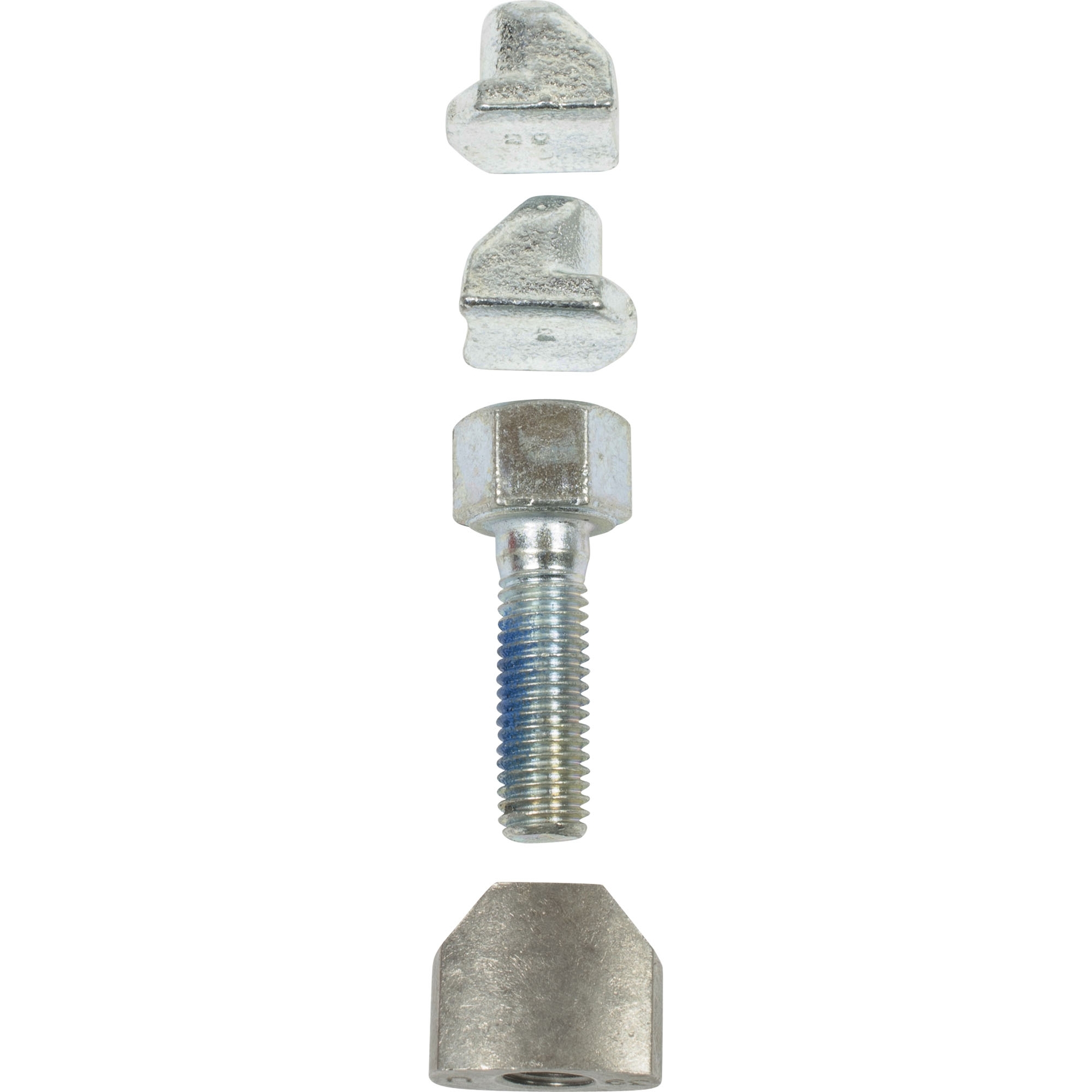

Adjustment set Knott Brake type 16-1365, 20-2425/1 Set for one wheel brake: 2 x Adjustment bolt 1 x Adjustment wedge 1 x Screw
Adjustment set Knott Brake type 20-963, 20-964 Set for one wheel brake: 2 x Adjustment bolt 1 x Nut 1 x Screw

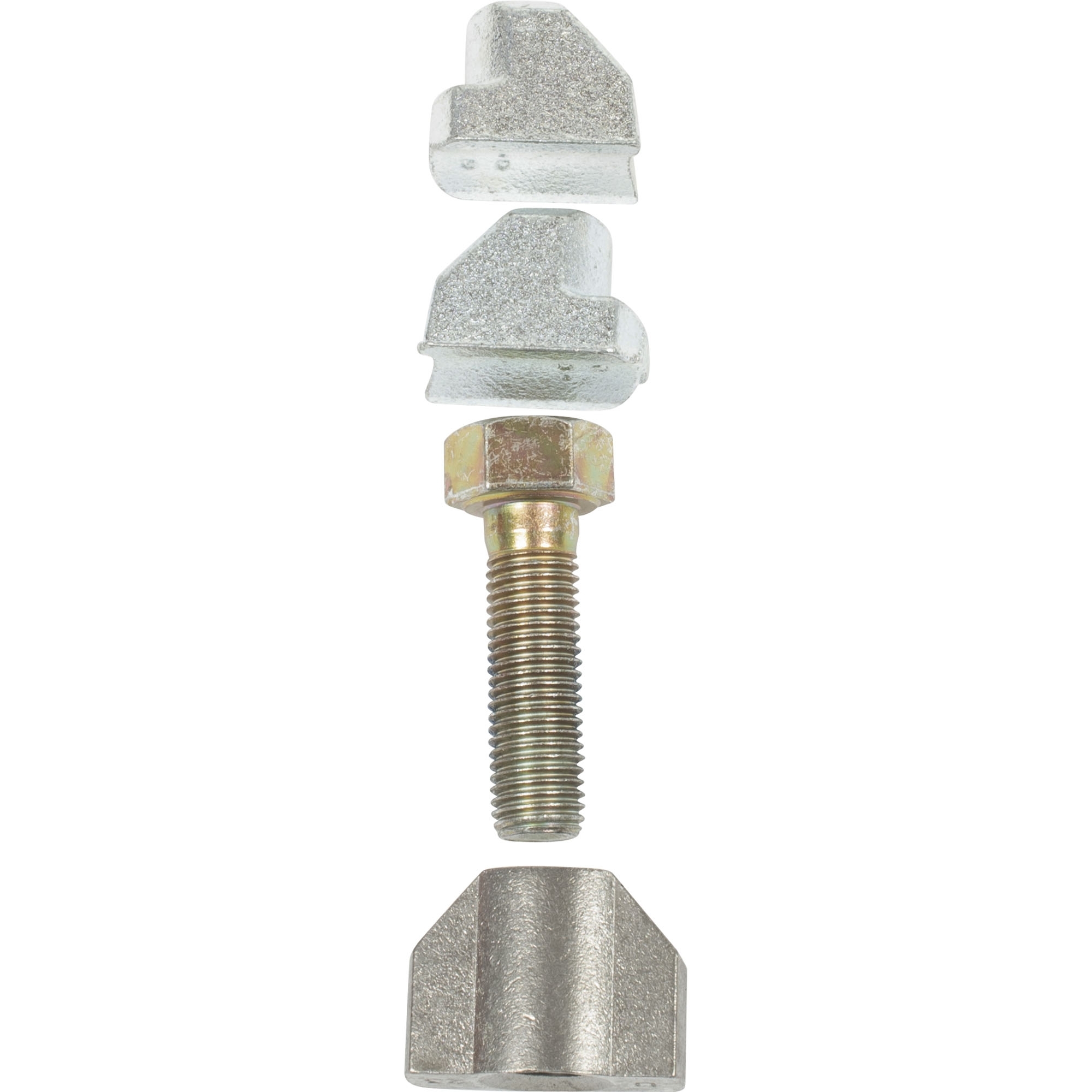

Adjustment set Knott Brake type 25-2025 Set for one wheel brake: 2 x Adjustment bolt 1 x Adjustment wedge 1 x Screw

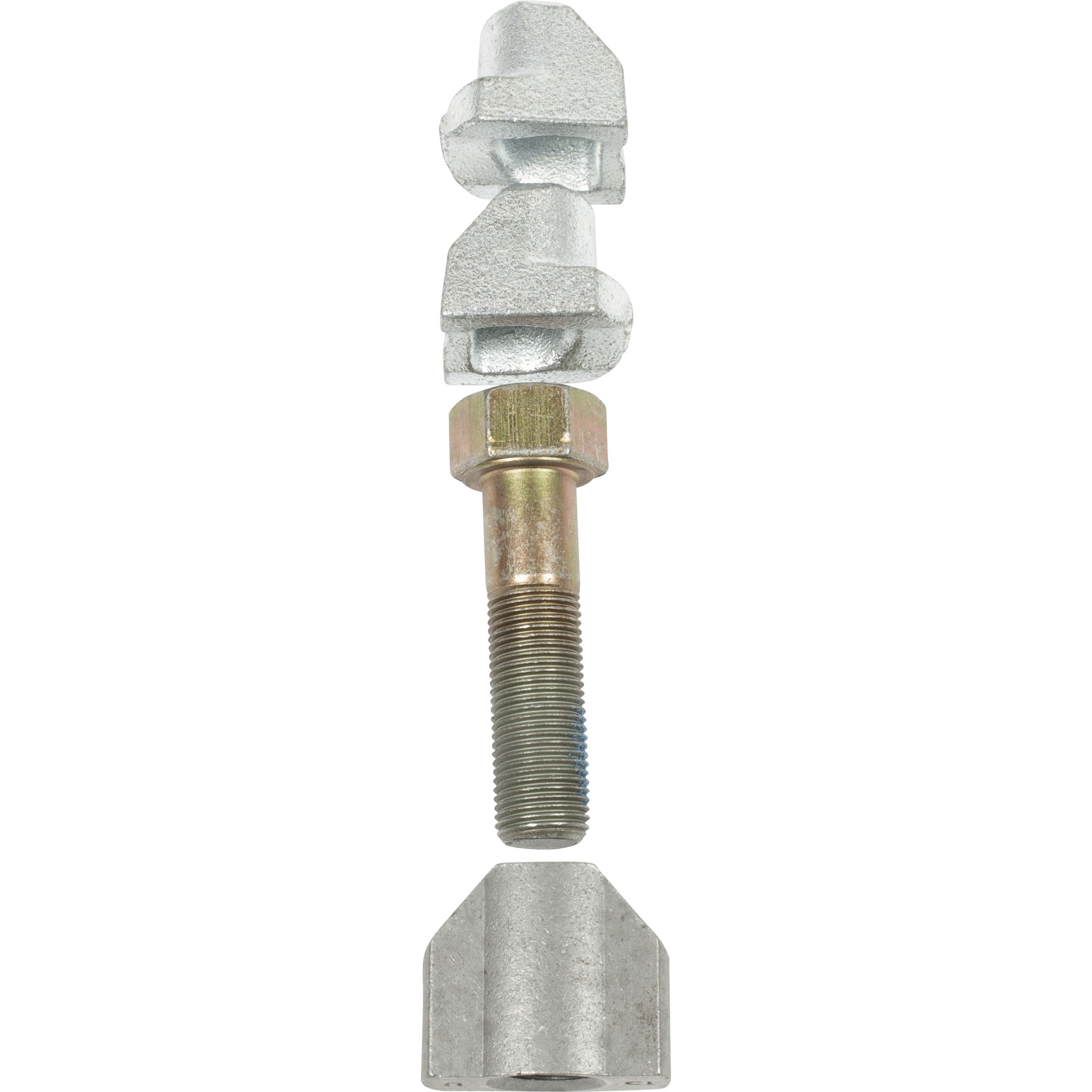

Adjustment set Knott Brake type 30-2261 Set for one wheel brake: 2 x Adjustment bolt 1 x Adjustment wedge 1 x Screw
Adjustment set WAP Brake type W184 RS / W205 RS 1 set for one wheel brake consisting of: 1 x Nachstellkeil, 1 x Adjustment bolt 1 x Nut

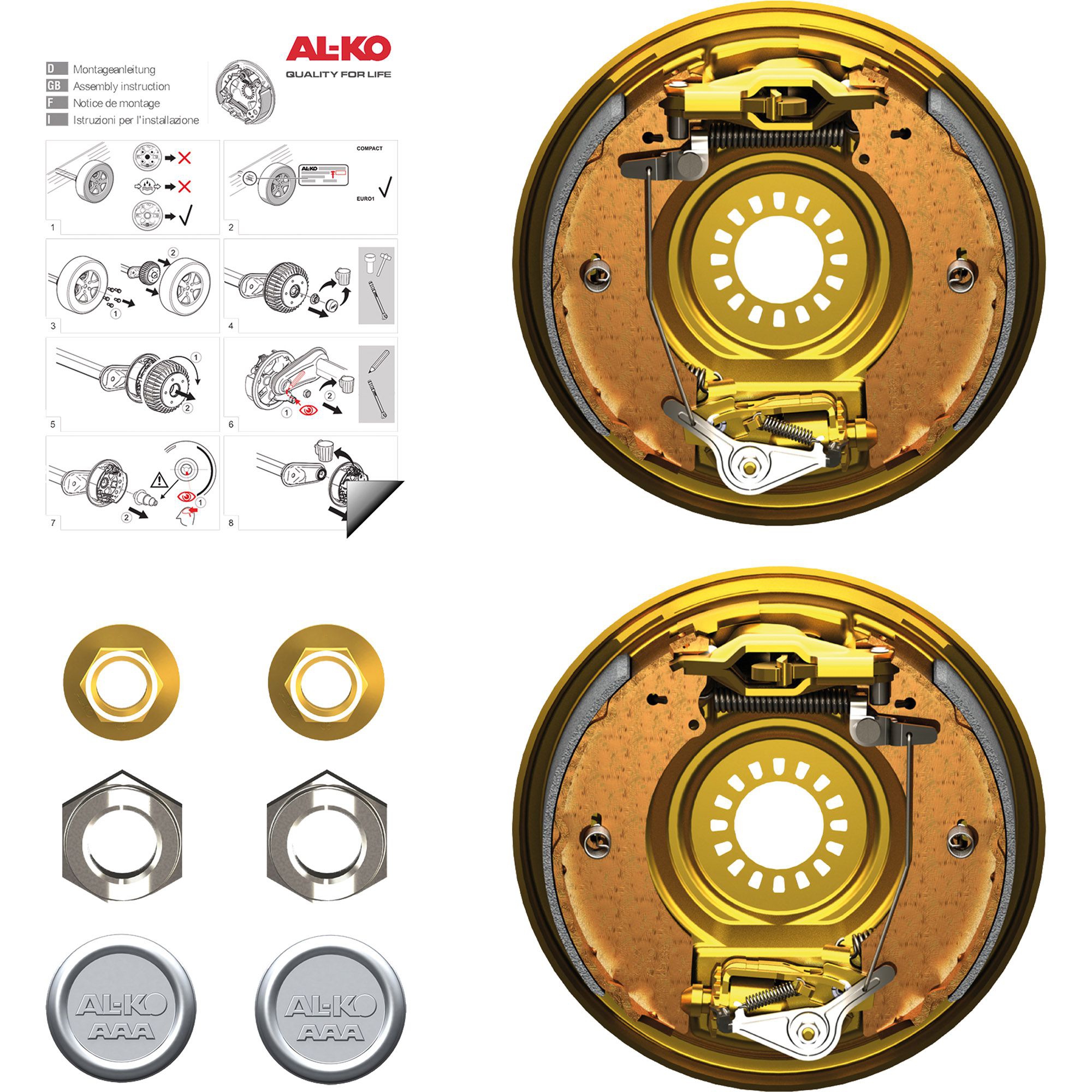

AL-KO replacement set AAA for wheel brake 2361 230 x 60 starting year 1999 spocket fitting version wheel brake 2361 set for 1 axle with automatic adjustment for replacement More driving safety due to a shorter braking distance by 5 m, more driving comfort due to softer braking, less maintenance costs due to longer service-intervals, no TUEV necessary after installation.

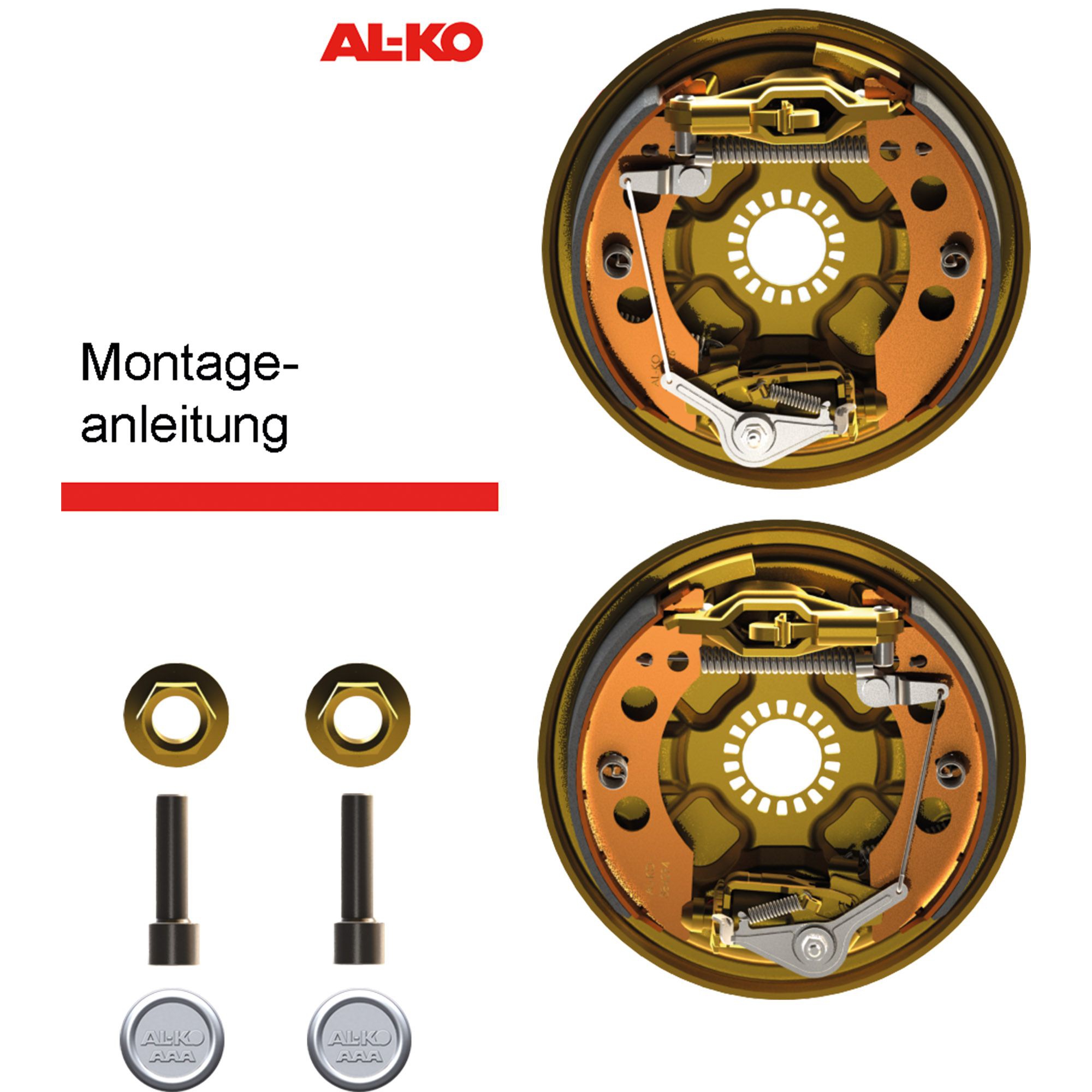

AL-KO Retrofit set AAA for wheel brake 2051, version with toothed profile. usable with wheel brake 2051 from year of manufacture 1999 for retrofitting set for 1 axle adjusts automatically weigth 7.6 kg Greater driving safety by a braking distance up to 5 m shorter. No renewed presentation to TÜV required following installation.

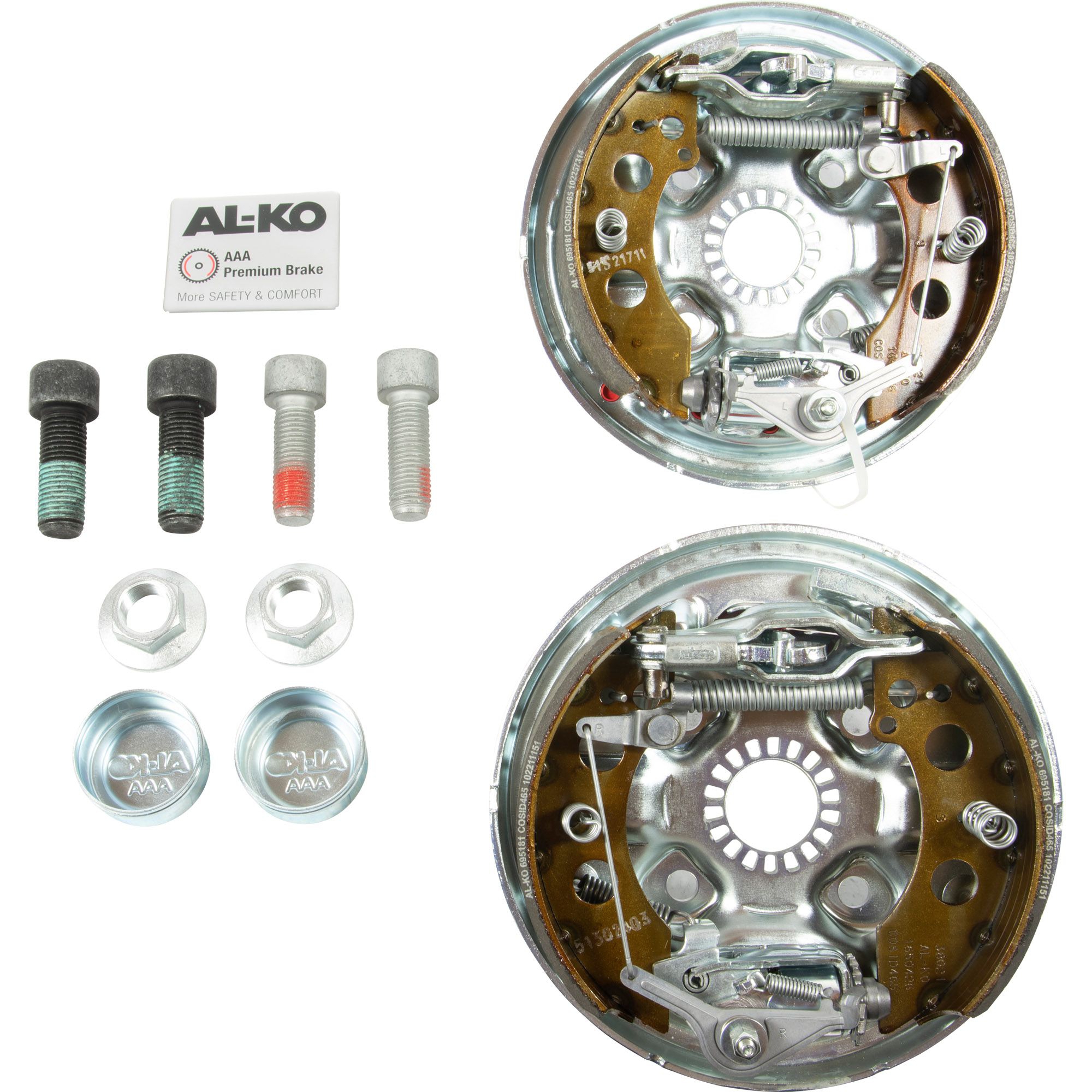

AL-KO Retrofit set AAA for wheel brake 2051, version with toothed profile with 4 holes. usable with wheel brake 2051 from year of manufacture 1999 for retrofitting set for 1 axle adjusts automatically weigth 7.6 kg Greater driving safety by a braking distance up to 5 m shorter. No renewed presentation to TÜV required following installation.
Backmatic lever Al-KO

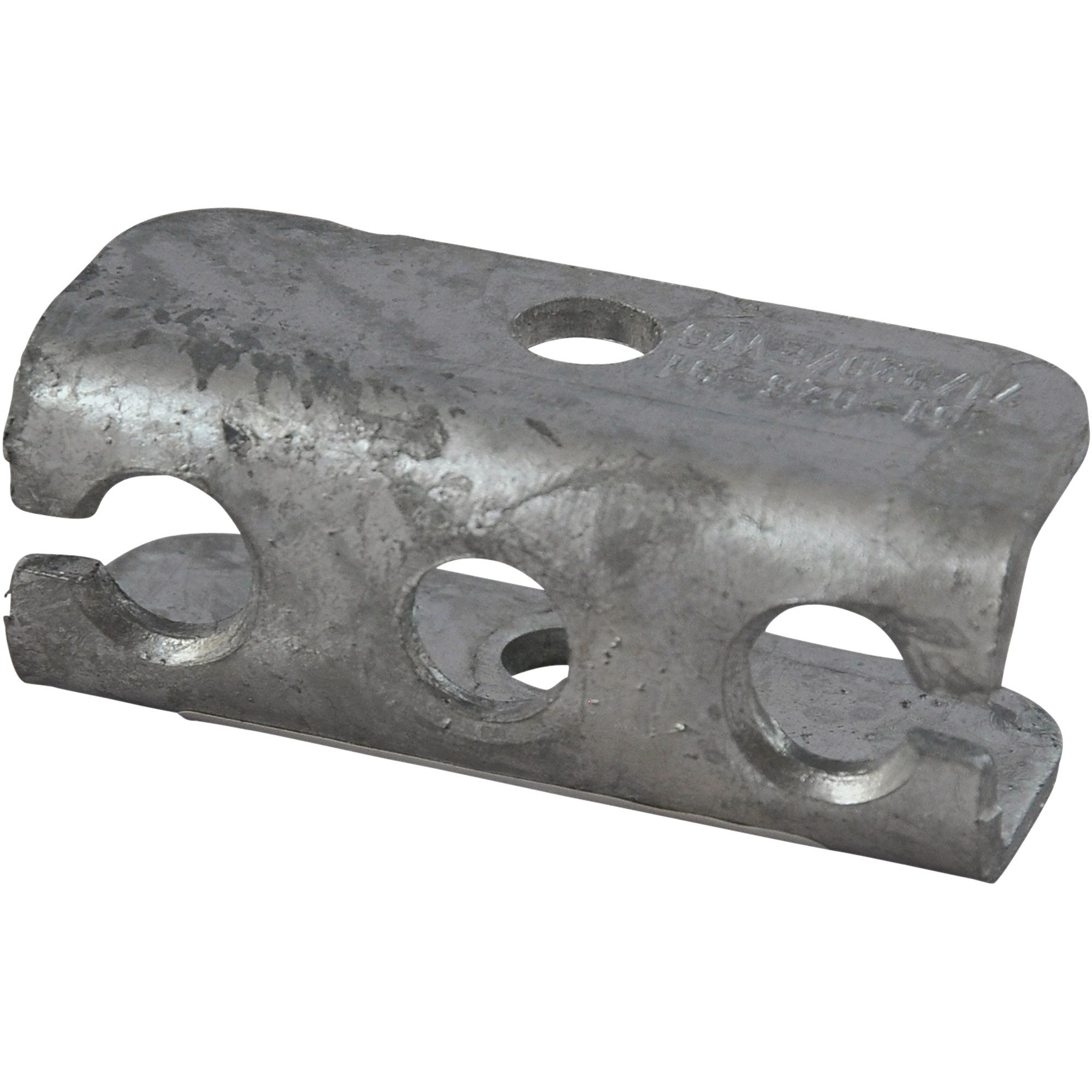

Balancing profile AL-KO

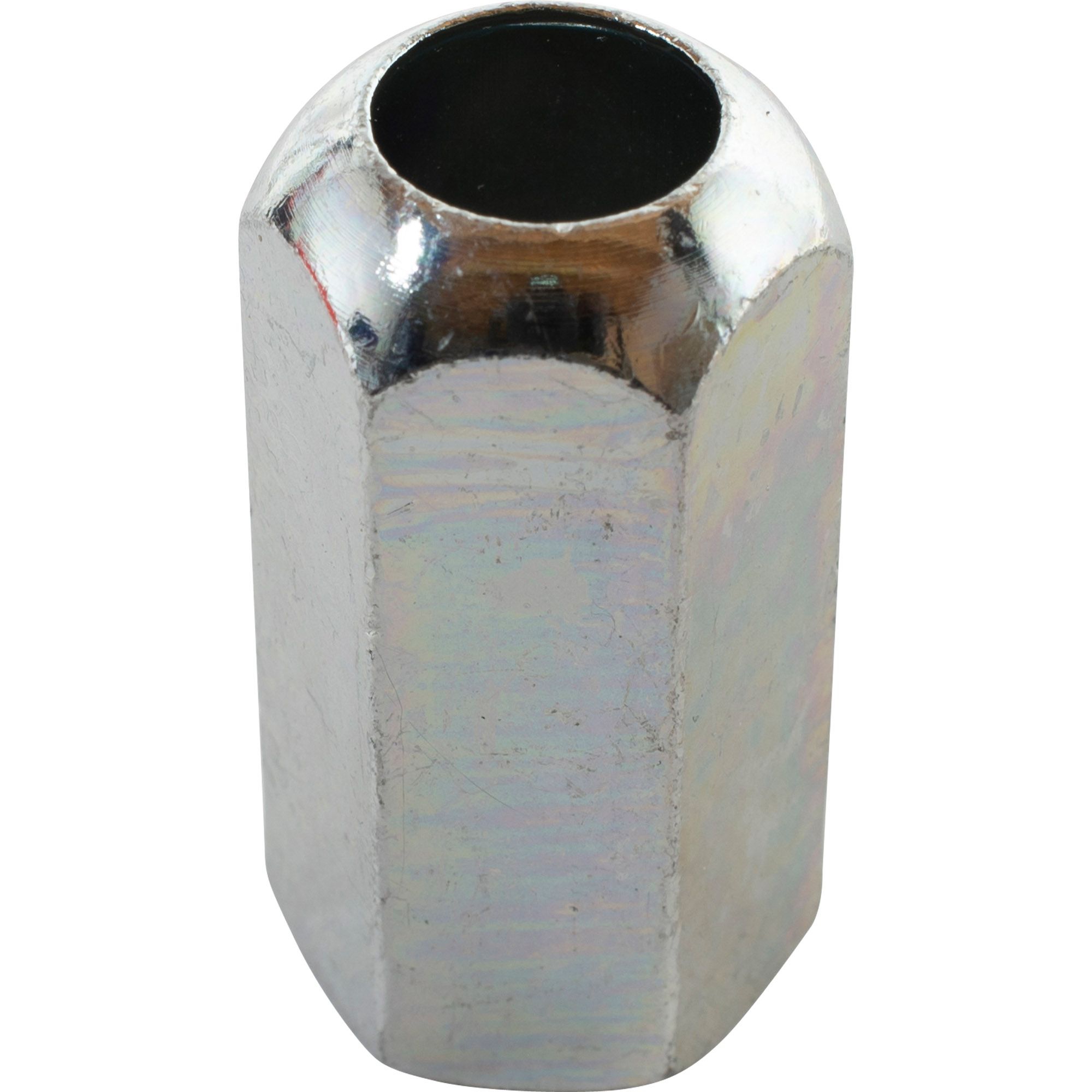

Ball nut M10 Length 35 mm Width across flat 17

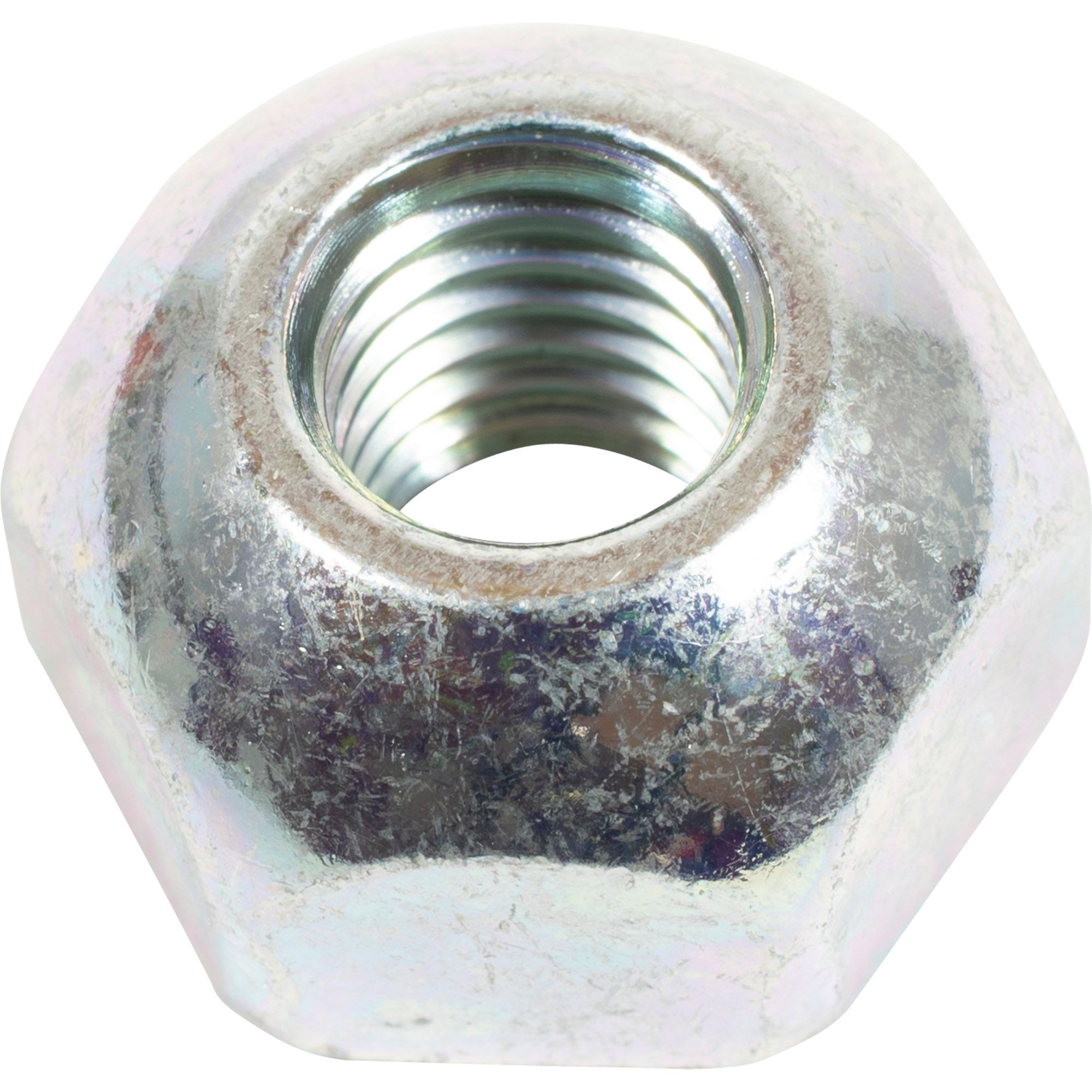

Ball nut M8 Length 10 mm Width across flat 17
Bearing bolt for AL-KO wheel brakes 1625/1636
Bearing bolt ALKO suitable for Euro-axles
Bearing seal Inner-Ø 20 mm Outer-Ø 47 mm Thickness 7 mm
Bearing seal for Nieper 2 piece Inner-Ø 25 mm Outer-Ø 45 mm Thickness 7 mm
