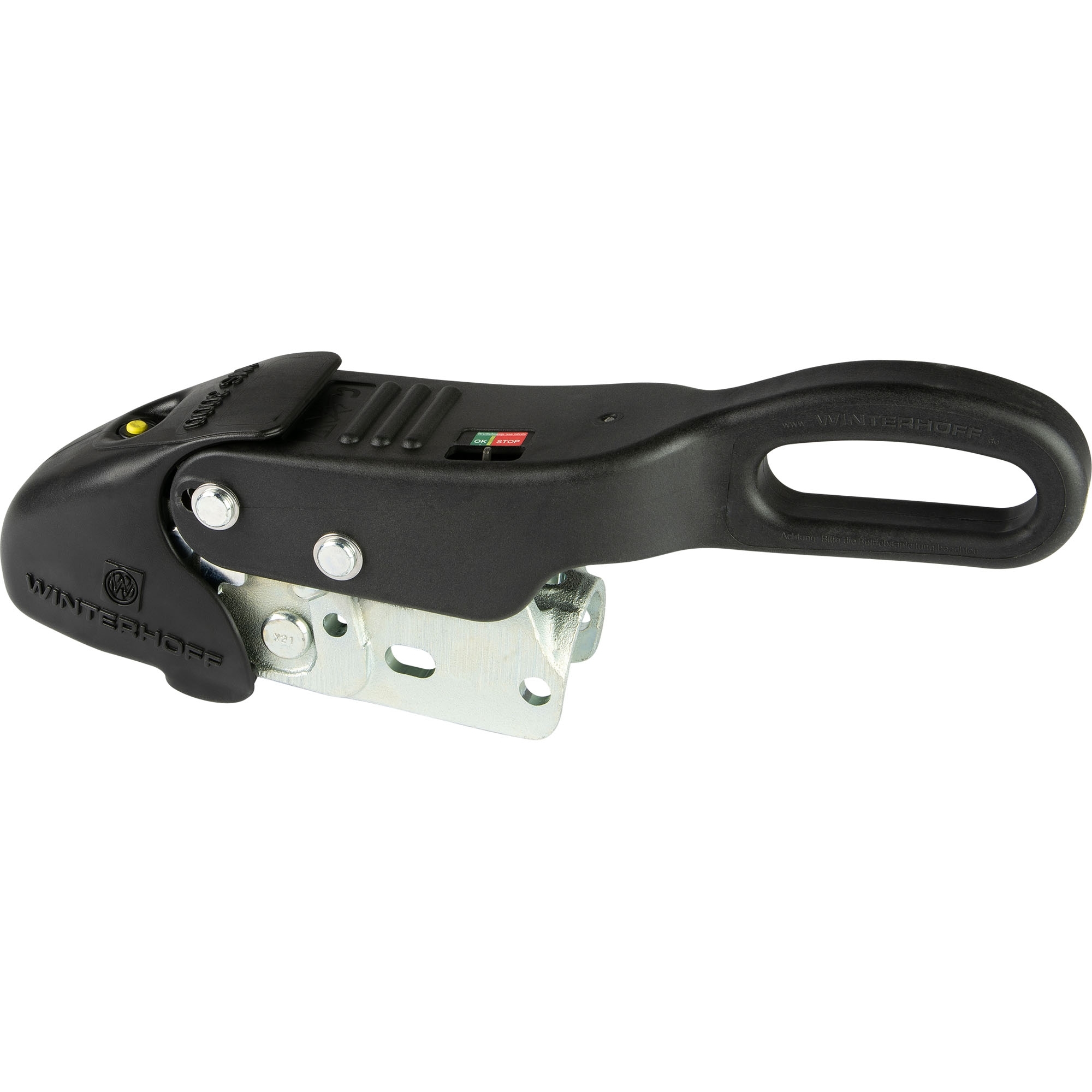

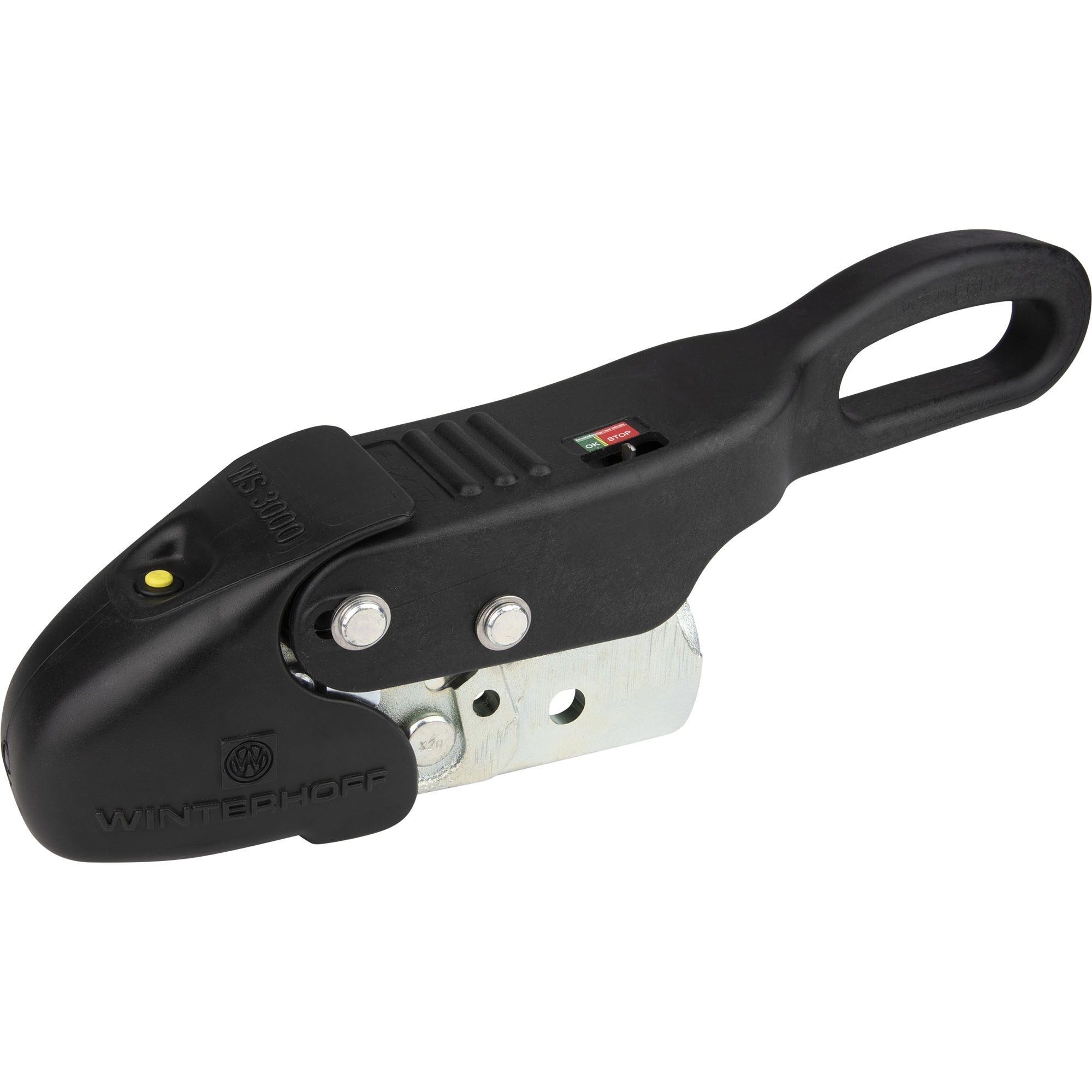

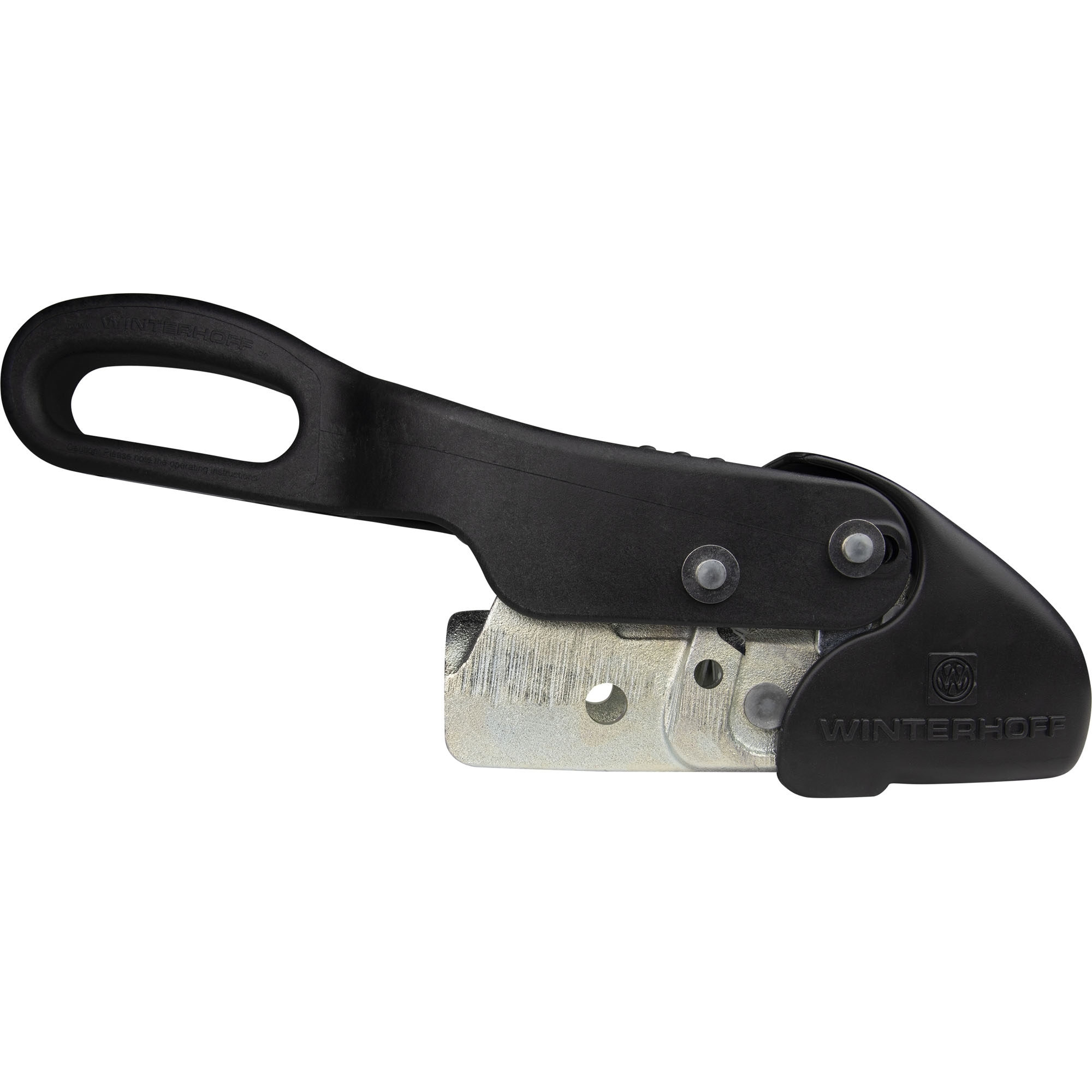

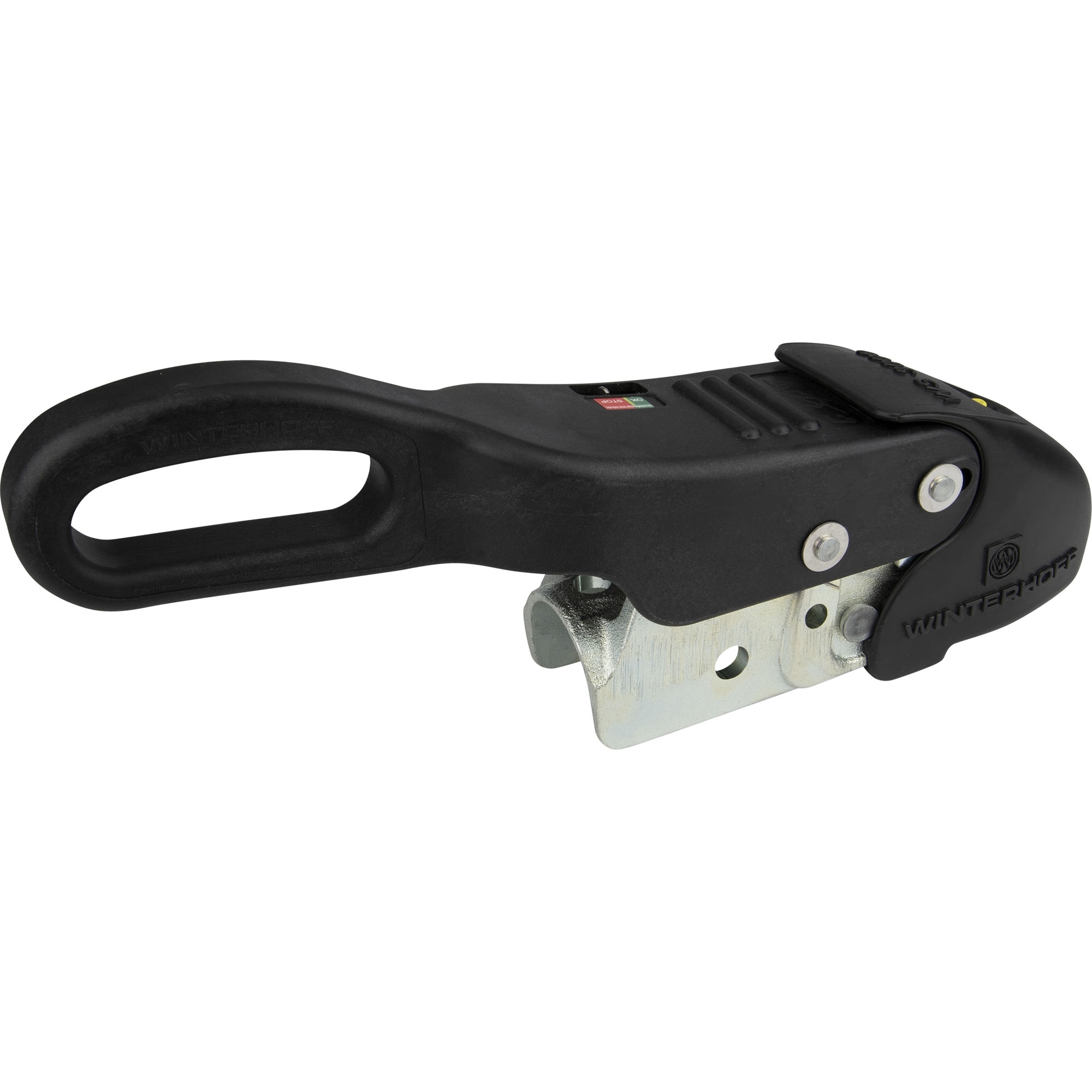

Track stabilization coupling WS 3000, Ø 50 mm
Product number:
012100045
Product information "Track stabilization coupling WS 3000, Ø 50 mm"
Coupling Head Winterhoff
WS 3000, with anti-sway damping
Perm. gross weight 3000 kg
Nose load 150 kg
Drawbar-Ø 50 mm
Hole horizontal Ø 14.5 mm
Hole vertical Ø 12.5 mm
Hole distance 40 + 54 mm
| Ausführung: | D |
|---|---|
| Bohrung senkrecht (mm): | 12,5 |
| Bohrung waagrecht (mm): | 14,5 |
| Durchmesser (mm): | 50 |
| Form: | rund |
| Gewicht: | 5.8 |
| Hersteller: | AL-KO, Winterhoff |
| Lochabstand senkrecht (mm): | 40 |
| Lochabstand waagrecht (mm): | 40 |
| Material: | Guss |
| Stützlast (kg): | 150 |
| Typ: | WS 3000 |
| Verkaufsverpackung: | Karton |
| zul. Gesamtgewicht (kg): | 3000 |
Login
Zubehör
FRIELITZ universal coupling box lock for anti-swin
FRIELITZ universal coupling box lock for anti-swinger clutches
• suitable for common ball couplings and anti-snatch couplings (not for Knott anti-snatch couplings)
• for the coupled and parked state, not for the drive operation
• Width customizable
• incl. Padlock with 2 keys
• packed in a box
Safety note: Not for driving. Before starting, check function and free space
The user is responsible for the correct use. We assume no liability for damage and loss.
There is a utility model protection for this product.
Product number:
012200099
