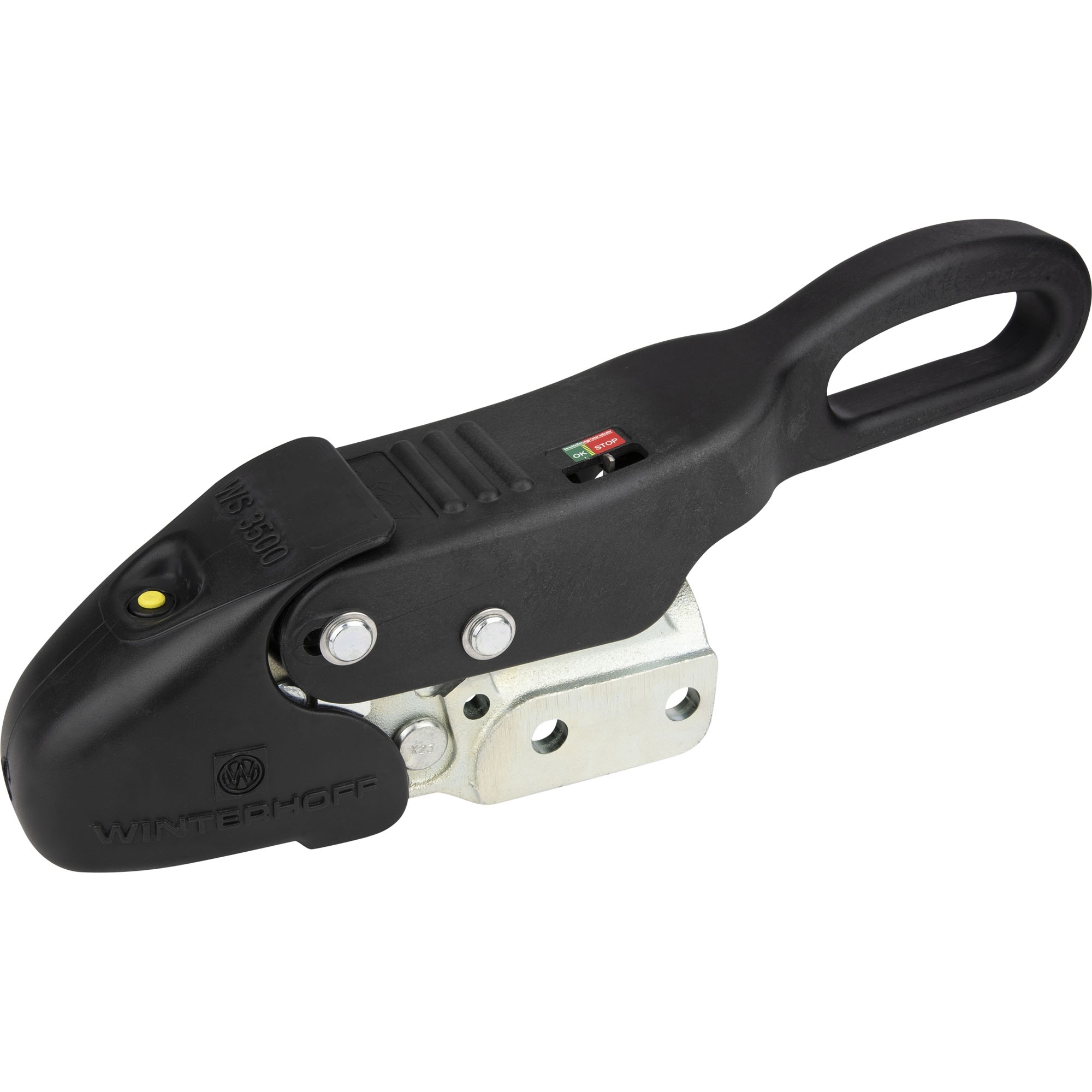

Track stabilization coupling WS 3500, Ø 60 mm

Product information "Track stabilization coupling WS 3500, Ø 60 mm"

Coupling Head Winterhoff WS 3500, with anti-sway damping Perm. gross weight 3500 kg Nose load 150 kg Drawbar-Ø 60 mm Hole horizontal Ø 16.5 mm Hole vertical Ø 16.5 mm Hole distance 40 + 54 mm
Ausführung: D
Bohrung waagrecht (mm): 16,5
Durchmesser (mm): 60
Form: rund
Gewicht: 6.5
Hersteller: AL-KO, Winterhoff
Lochabstand waagrecht (mm): 54
Material: Guss
Stützlast (kg): 150
Typ: WS 3500
Verkaufsverpackung: Karton
zul. Gesamtgewicht (kg): 3000
