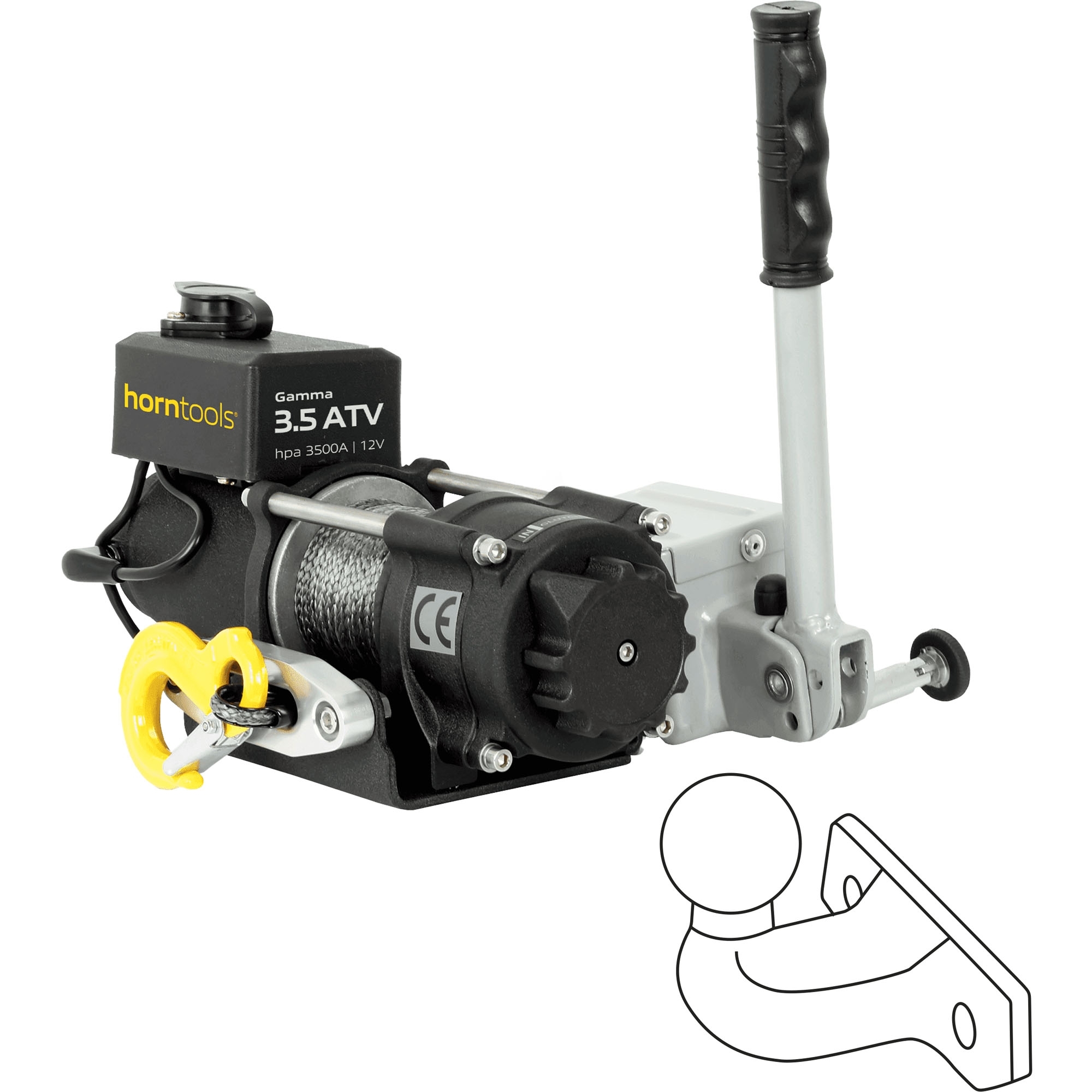

Winch Gamma, 12 V, Tensile Force 1600 kg

Product information "Winch Gamma, 12 V, Tensile Force 1600 kg"

Winch Gamma with attachment to the trailer coupling Tensile force 1600 kg Speed 3.0 m / min Reduction 170:1 Engine power 1.74 kW Voltage 12 Volt Max. Power consumption 160 A Plastic cable Ø 4 mm Plastic cable length 30 m Drum (Ø x L) 37 x 80 mm Dimensions 335 x 130 x 175 mm Content: Overrunning clutch, automatic brake Cable remote control Special ATV/Quad cable remote control with handlebar mounting kit aluminium cable window Winch can be retrofitted with wireless remote control. Safety note: Cable winch not suitable for lifting loads, securing loads and transporting people!
Farbe: schwarz
Geschwindigkeit (m/min): 2,8
Gewicht: 9
Leistung (W): 1470
Material: Stahl
Seil-Ø (mm): 4,8
Spannung (V): 12
Stromstärke (A): 150
Trommelkapazität Seil (m): 30
Typ: Gamma
Untersetzung 1: 170:1
Zugkraft (kg): 1600

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Zubehör

Wireless Remote Control 12V, Internal Installation
Wireless remote control internal installation for 12 V cable winches Length 100 mm Width 40 mm Height mm Range approx. 50 m suitable for all Horntools-Winches, except HPB2000
Product number: 017800153

Emergency Off Switch 12/24V Perm.Load 200/500A
Emergency off Switch Voltage 12 V - 24 V Permanent load 200 - 500 A
Product number: 017800145

Wireless Remote Control 12V, External Installation
Wireless remote control external installation for 12 V cable winches Length 150 mm Width 80 mm Height 35 mm Range approx. 50 m suitable for all Horntools-Winches, except HPB2000
Product number: 017800135

Pulley, Dimension 213 x 130 x 480 mm, 9000 kg
Pulley Material steel Weight class 9000 kg Cable Ø max. 15 mm Rollers Ø 110 mm Length 260 mm Width 130 mm Height 480 mm
Product number: 017800110

Cover for Cable Winch, 280 x 105 x 140 mm
Cover for cable winch Material neoprene for 900 - 1588 kg Length 280 mm Width 105 mm Height 140 mm
Product number: 017800141

Emergency Off Switch, 12 V, Permanent Load 200 A
Emergency off Switch Voltage 12 V Permanent load 200 A
Product number: 017800146

Pulley, Dimension 213 x 78 x 25 mm, 4000 kg
Pulley Material steel Weight class 4000 kg Cable Ø max. 10 mm Rollers Ø 60 mm Length 148 mm Width 78 mm Height 25 mm
Product number: 017800111

Pulley, Dimension 213 x 51 x 27 mm, 2000 kg
Pulley Material steel Weight class 2000 kg Cable Ø max. 7 mm Rollers Ø 44.5 mm Length 97 mm Width 51 mm Height 27 mm
Product number: 017800119
